813 gsm Biaxial Stitched Glass Fabric...

813 gsm Biaxial Stitched Glass Fabric (+45°/-45°) Saertex® X-E-810, width 127 cm

TV813-1
0 Item
Out-of-Stock
€13.31

By buying this product you can collect up to 1 point. Your cart will total 1 point that can be converted into a voucher of €0.10.

€13.31 Tax incl. €11.00 Tax excl.
Tax included

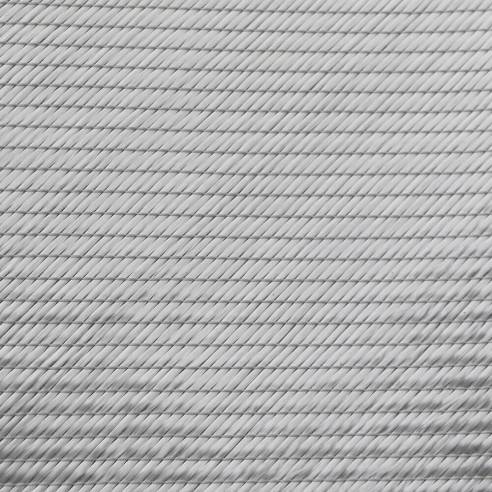

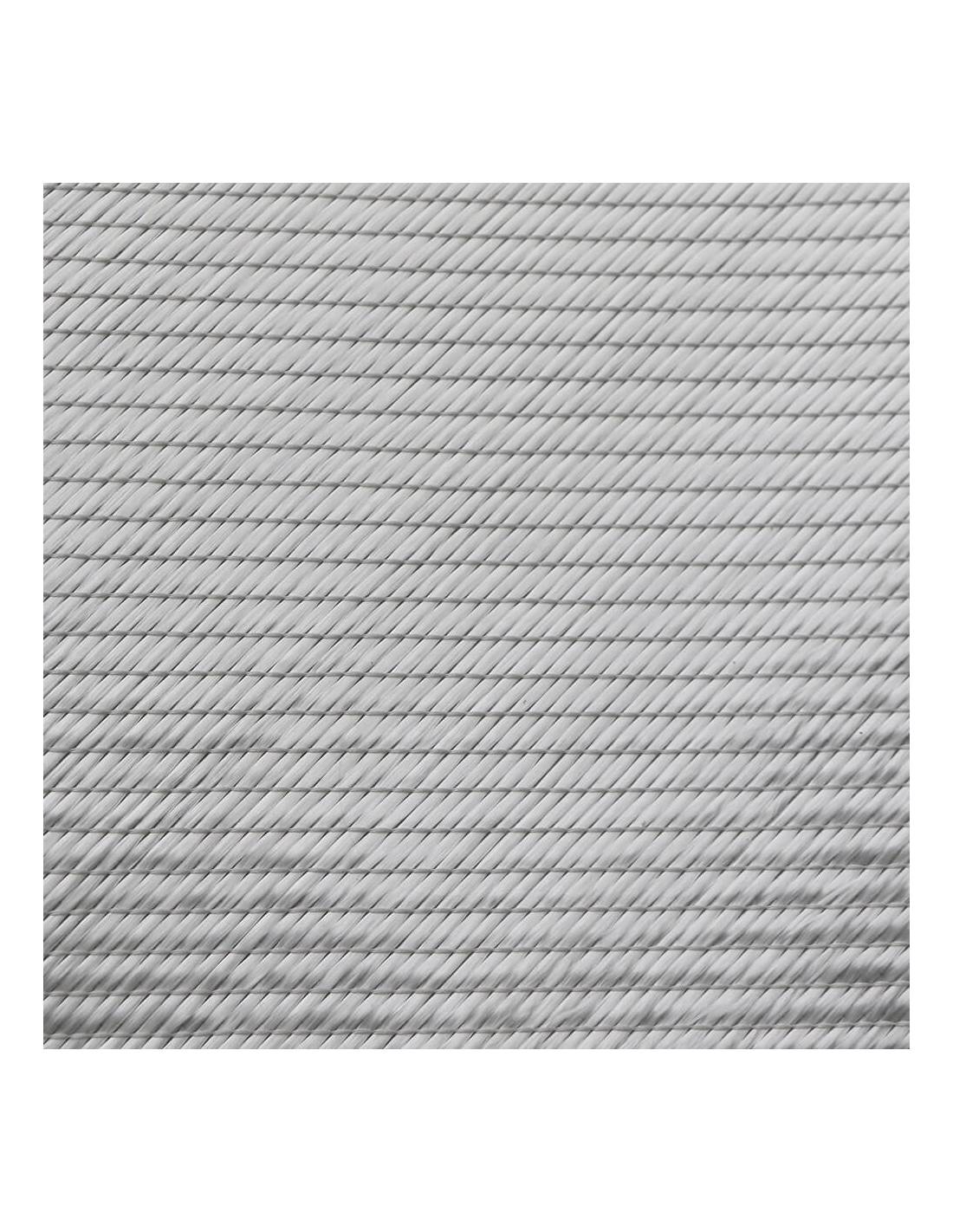

813 gsm biaxial E-glass produced with two layers of unidirectional fabric oriented at +45º and -45º. Widely used for hand lay-up, injection (RTM and RTM light) and infusion (VARI).

Roll width: 1270 mm

Stitched Glass Fabrics, also named Non-Crimp Fabrics, are ideally suited for selective reinforcement. Fibreglass is bundled and stitched together, rather than woven, so there is no crimp in the yarn. As a result, these reinforcements offer optimized directional strength for their finished composite parts, showing no distortion of the yarns. For this reason, they are popular in the marine, building & construction, rail and wind energy industries.

Supply

 Calculate Shipping Cost
Shipping:
0
to Spain via
Estimated delivery: No estimated delivery specified day(s)
Ratings and comments from our customers
( 0.0 / 5) - 0 feedback(s)

813 gsm biaxial E-glass produced with two layers of unidirectional fabric oriented at +45º and -45º. Widely used for hand lay-up, injection (RTM and RTM light) and infusion (VARI).

Roll width: 1270 mm

Stitched Glass Fabrics, also named Non-Crimp Fabrics, are ideally suited for selective reinforcement. Fibreglass is bundled and stitched together, rather than woven, so there is no crimp in the yarn. As a result, these reinforcements offer optimized directional strength for their finished composite parts, showing no distortion of the yarns. For this reason, they are popular in the marine, building & construction, rail and wind energy industries.

These fabrics are ideal mainly for hand lay-up and the infusion process, where fast wet-out and strength control are essential.

They are compatible with polyester (Crystic), urethane-acrylate (Crestapol), vinyl ester (Crystic), and epoxy resins (Resoltech & Castropox).

Benefits of multiaxial fabrics:

  1. Fiber, weight and orientation are ideally adjusted: The positions are specifically aligned to the ideal quantity and orientation in the loading direction // Angles of between -22.5° and +22.5° are possible // 0° position is also possible.
  2. Stretched fibers for optimum mechanical strength: Absorption of the highest possible loads through stretched fibres // Reduced component weight while maintaining equal mechanical properties or even a higher component load with the same component weight.
  3. Individual drapability and outstanding permeability: The drapability of the our multiaxials is tailored to customer requirements and exhibits outstanding permeability.
  4. Cost savings due to fewer layers: Reduction of the manufacturing costs (fewer layers are required thanks to the higher area weight of the individual layers).

Type of supply

813 gsm Biaxial glass cloth (+45°/-45°) Saertex® X-E-810 x 1 m2, supplied folded and packed in plastic bag

813 gsm Biaxial glass cloth (+45°/-45°) Saertex® X-E-810 x 5 m2, supplied rolled in cardboard box

813 gsm Biaxial glass cloth (+45°/-45°) Saertex® X-E-810 x 25 m2, supplied rolled in cardboard box

813 gsm Biaxial glass cloth (+45°/-45°) Saertex® X-E-810 x full roll of 50-51 kg, supplied rolled in cardboard box

Type
Biaxial
Width
127 cm
