Hybrid reinforcement fabrics

Hybrid fabrics combining carbon, glass, aramid or Innegra for manufacturing composite parts. Compare the fibre combination and material construction according to the laminate you need.

Carbon and aramid hybrid fabrics
Carbon and aramid hybrid fabrics
Carbon and Innegra hybrid fabrics
Carbon and Innegra hybrid fabrics
Glass and aramid hybrid fabrics
Glass and aramid hybrid fabrics
Glass and carbon hybrid fabrics
Glass and carbon hybrid fabrics
What to consider when choosing

Which fibre combination should you choose?

The selection is divided by the materials combined: carbon with aramid or Innegra, glass with aramid, and glass with carbon. Construction also varies; find fabrics, multiaxials and combinations with glass fibre mat.

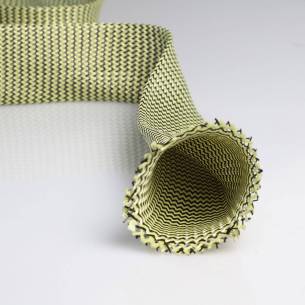

One fibre combination does not automatically offer the same properties as another. Check the data sheet for layer arrangement, intended process and resin system. For tubular shapes, check that you are selecting a sleeve rather than a flat fabric.

Applications and material selection

For canoes, kayaks, car or motorcycle parts and sporting equipment, hybrid carbon fibre and Innegra fabrics describe uses where impact matters. For carbon combined with aramid, hybrid carbon fibre and aramid fabrics offer plain and twill constructions for hand lay-up, infusion or RTM.

The catalogue's hybrid glass fibre and aramid fabrics include glass fibre mat and are described for impact-resistant parts; compare their layers. Hybrid glass and carbon fibre fabrics offer multiaxial constructions where each material may occupy different directions.

Buy the combination matching the laminate, not simply the fabric colour. Total areal weight does not explain each fibre's proportion or orientation.

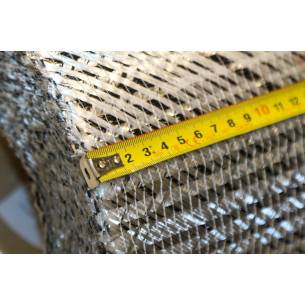

615 gsm (±45°/90°/0°) Saertex Quadaxial hybrid glass-carbon Q-EC-615, 127 cm wide
Reinforcement fibres

615 gsm (±45°/90°/0°) Saertex® Quadaxial hybrid glass-carbon Q-EC-615, 127 cm wide

SAERTEX
TCQ615-1270
€37.65 €37.65 VAT excl.
Hybrid glass-carbon fabric Saertex Quadaxial 615 g/m² for high-performance applications where high mechanical strength and low weight are required. Made with two layers of unidirectional E glass fabric of 600 TEX and 200 g/m², oriented at ±45°, and two layers of 12K Grafil 34-700 WD unidirectional carbon with 0.7% A. The first carbon oriented at 0° has a...
View product

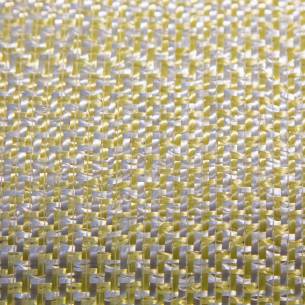

Hybrid Aramid/Glass Twill Fabric VT390T + Glass Mat of 225 g/m²
Out-of-Stock
Reinforcement fibres

Hybrid Aramid/Glass Twill Fabric VK390T + Glass Mat of 225 g/m2

21644
€44.45 €44.45 VAT excl.
VK390T+Mat 225 is a hybrid reinforcement composed of a 396 g/m² hybrid Aramid/Glass twill fabric combined with a 225 g/m² glass chopped strand mat, totaling 621 g/m². It is ideal for the manufacture of composite parts with high mechanical performance, with special impact resistance. It is recommended for use with polyester resins (ISO and ISO-NPG), vinyl...
View product
Araglass-540-aramida-vidrio-370-gm2-1
Out-of-Stock
Reinforcement fibres

Araglass 540, 370 gsm (+45°/-45°) Biaxial Aramid/Glass Hybrid Fabric / 170 gsm Glass Chopped Strand Mat

€44.45 €44.45 VAT excl.
Araglass 540 is a hybrid Aramid/Glass Combi Mat made of a (+45º/-45º) Aramid/Glass biaxial fabric bonded to a 170 gsm glass chopped strand mat. It is suitable for manufacturing high performance composite parts showing high mechanical properties, specially for applications where high impact resistance is needed. Roll Width : 127 cm
View product
