Glass fibre combination fabrics

Glass fibre combination materials bringing together different layers for laminate manufacture. Find combinations of fabric and glass fibre mat, as well as materials described for infusion and RTM.

What to consider when choosing

Selecting the combination's construction

Depending on the product, a combination material may include fabric, glass fibre mat and an internal distribution layer. Compare layer composition and the stated process: these materials are not all intended for the same manufacturing method.

The product data sheet should confirm the resin and application. Do not choose solely by total areal weight, because materials of similar weight may have different constructions. Maintain that distinction when comparing glass fibre mat or glass fibre multiaxials.

Applications and material selection

Fabric and glass fibre mat combinations are described for large parts, marine work and, in certain references, wind-energy components. For closed moulding, Metycore and Vitrocore include inner layers aiding resin flow; SAERcore LEO covers complex-shaped interior components. These are different selection criteria.

To build the layers separately, compare glass fibre mat and multiaxial glass fibre materials.

Combi Mat Triaxial glass 800 g/m2 (0°/+45°/-45°) / Mat 100 g/m2, 127 cm wide
Reinforcement fibres

Combi Mat Triaxial glass 800 g/m2 (0°/+45°/-45°) / Mat 150 g/m2, 127 cm wide

TV800+150
€9.95 €9.95 VAT excl.

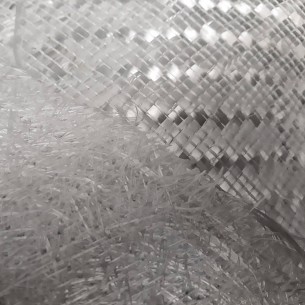

Combi Mat Triaxial glass ideal for laminations with polyester, vinyl ester and urethane-acrylate resins. Made with triaxial glass fabric 800 g/m2 , stitched to a chopped strand mat emulsion type 150 g/m2. Especially used for large components as high performance structural reinforcement. Very used in sailing , wind and manufacturing composite parts in...
View product
XM600/300 Combi Mat 600 g/m2 Biaxial E-Glass Fabric (+45°/-45°) / Mat 300 g/m2, 125 cm wide
Reinforcement fibres

XM600/300 Combi Mat 600 g/m2 Biaxial E-Glass Fabric (+45°/-45°) / Mat 300 g/m2, 125 cm wide

XM600/300
€10.10 €10.10 VAT excl.
Combi Mat Biaxial E-glass is ideal for laminates with polyester, vinyl ester, epoxi and urethane-acrylate resins. Made with a 600 g/m2 biaxial glass fabric stitched to a 300 g/m2 emulsion chopped strand mat. Especially recommended as high performance structural reinforcement for large composite parts. Very used for the production of composite boats,...
View product
XM600/250 Combi Mat 600 g/m2 Biaxial E-Glass Fabric (+45°/-45°) / Mat 250 g/m2, 127 cm wide
Out-of-Stock
Reinforcement fibres

XM600/300 Combi Mat 600 g/m2 Biaxial E-Glass Fabric (+45°/-45°) / Mat 250 g/m2, 127 cm wide

XM600/250
€8.95 €8.95 VAT excl.
Combi Mat Biaxial E-glass is ideal for laminates with polyester, vinyl ester and epoxy resins. Made with a 600 g/m2 biaxial glass fabric stitched to a 250 g/m2 emulsion chopped strand mat. Especially recommended as high performance structural reinforcement for large composite parts. Very used for the production of composite boats, windblades and any...
View product
Hybrid Aramid/Glass Twill Fabric VT390T + Glass Mat of 225 g/m²
Out-of-Stock
Reinforcement fibres

Hybrid Aramid/Glass Twill Fabric VK390T + Glass Mat of 225 g/m2

21644
€44.45 €44.45 VAT excl.
VK390T+Mat 225 is a hybrid reinforcement composed of a 396 g/m² hybrid Aramid/Glass twill fabric combined with a 225 g/m² glass chopped strand mat, totaling 621 g/m². It is ideal for the manufacture of composite parts with high mechanical performance, with special impact resistance. It is recommended for use with polyester resins (ISO and ISO-NPG), vinyl...
View product
Araglass-540-aramida-vidrio-370-gm2-1
Out-of-Stock
Reinforcement fibres

Araglass 540, 370 gsm (+45°/-45°) Biaxial Aramid/Glass Hybrid Fabric / 170 gsm Glass Chopped Strand Mat

€44.45 €44.45 VAT excl.
Araglass 540 is a hybrid Aramid/Glass Combi Mat made of a (+45º/-45º) Aramid/Glass biaxial fabric bonded to a 170 gsm glass chopped strand mat. It is suitable for manufacturing high performance composite parts showing high mechanical properties, specially for applications where high impact resistance is needed. Roll Width : 127 cm
View product
Polymat FR 450/G500/450 Glass Fabric for RTM Injection and Infusion
Out-of-Stock
Reinforcement fibres

Polymat FR 450/G500/450 Glass Fabric for RTM Injection and Infusion

PM450-G500-450
€57.84 €57.84 VAT excl.
Polymat FR 450/G500/450 is a high permeability glass fabric for the production of composite parts by infusion or RTM (injection).  A three-dimensional glass mat  composed of a knitted glasscore sandwiched between two layers of CSM. This product is specifically designed for the closed moulding process using techniques such as RTM & VIP for the...
View product
