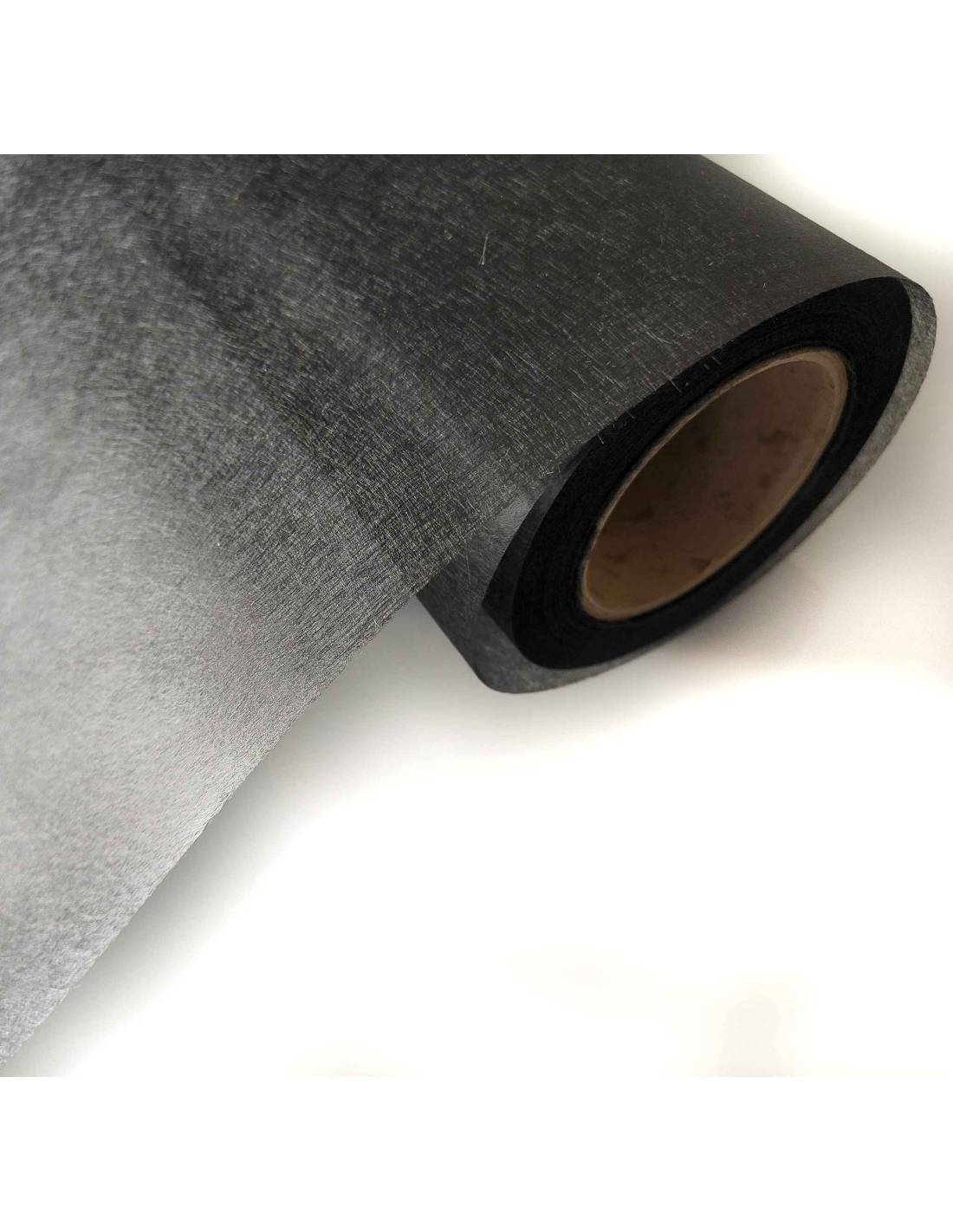

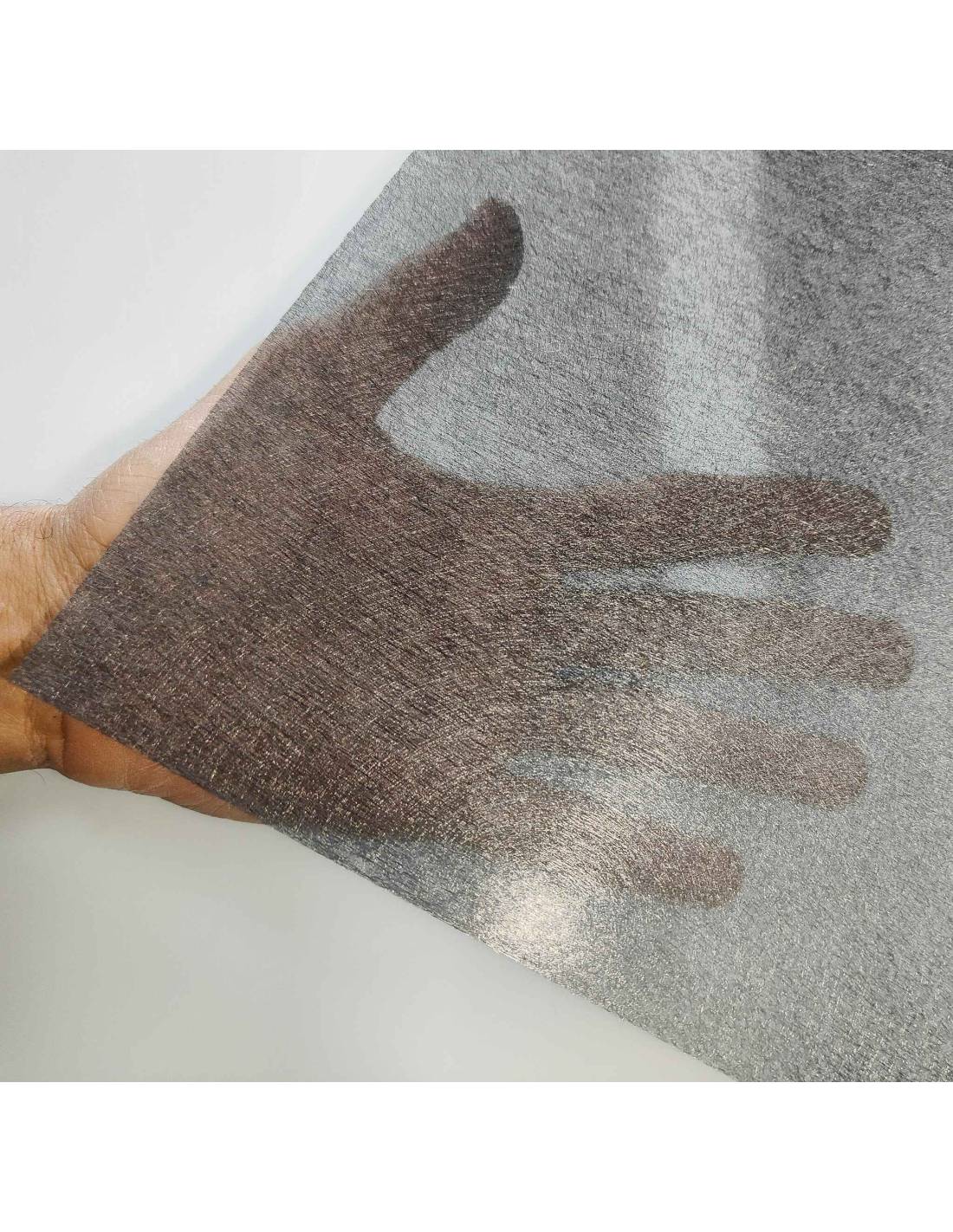

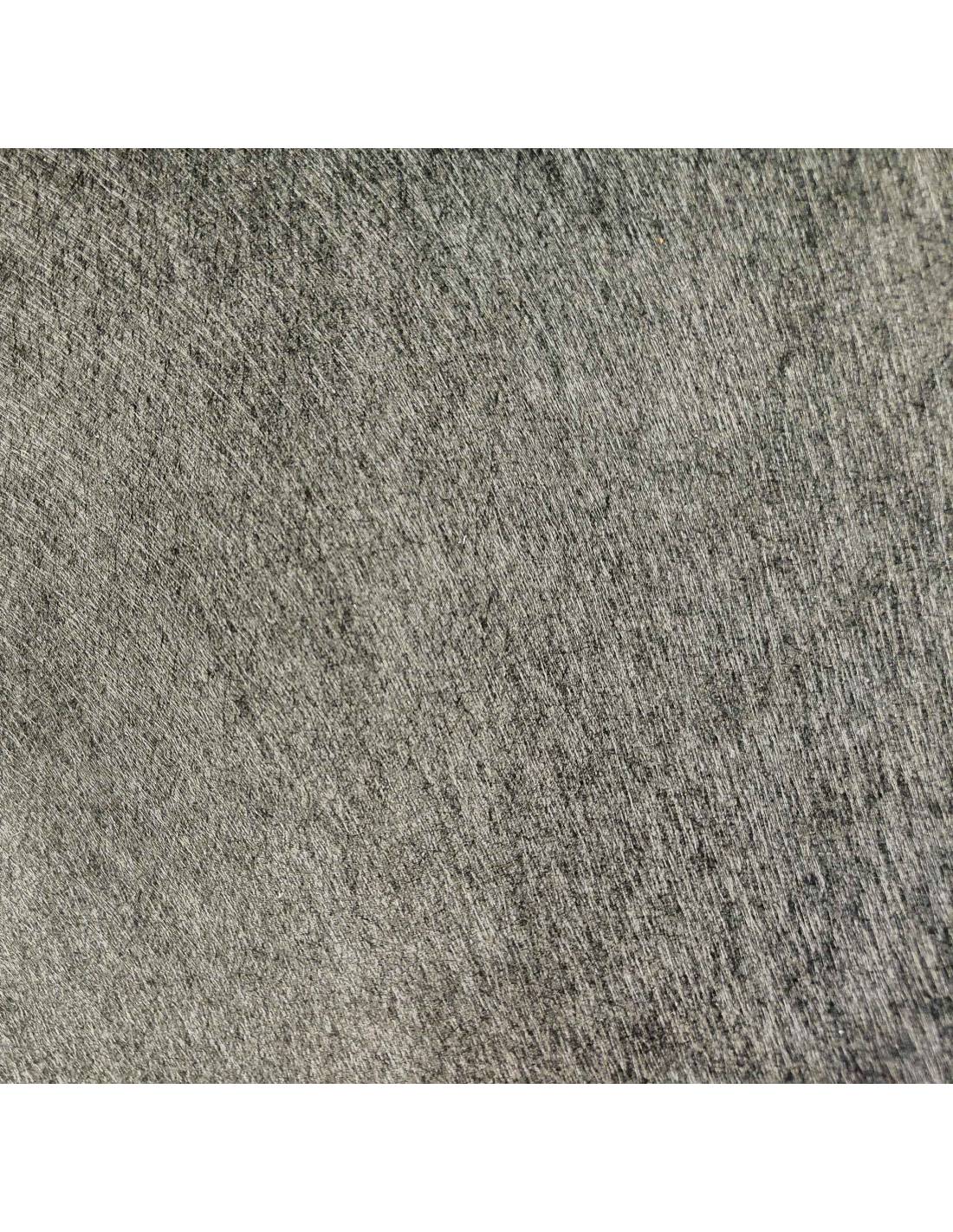

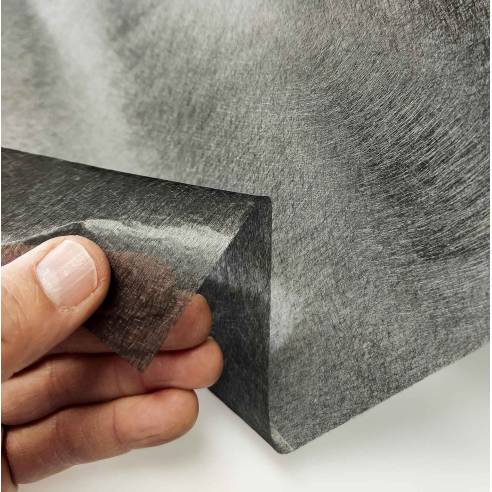

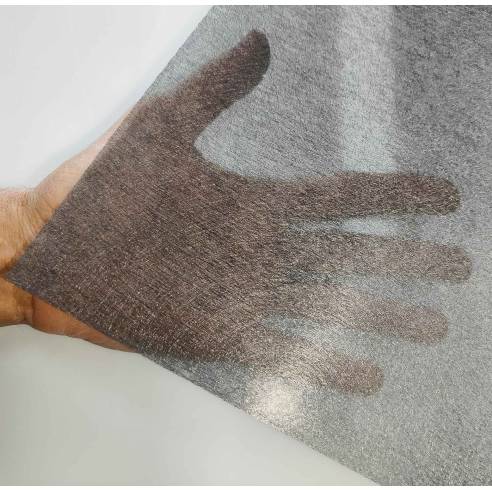

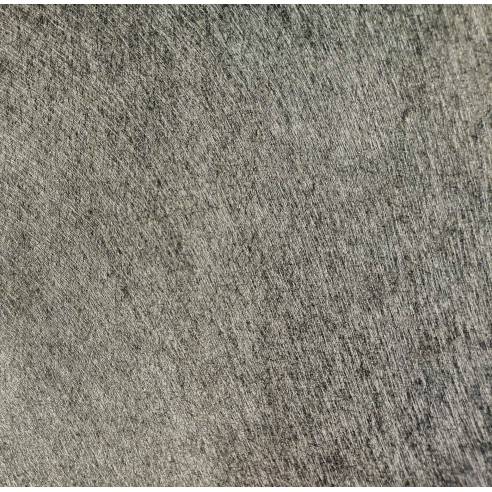

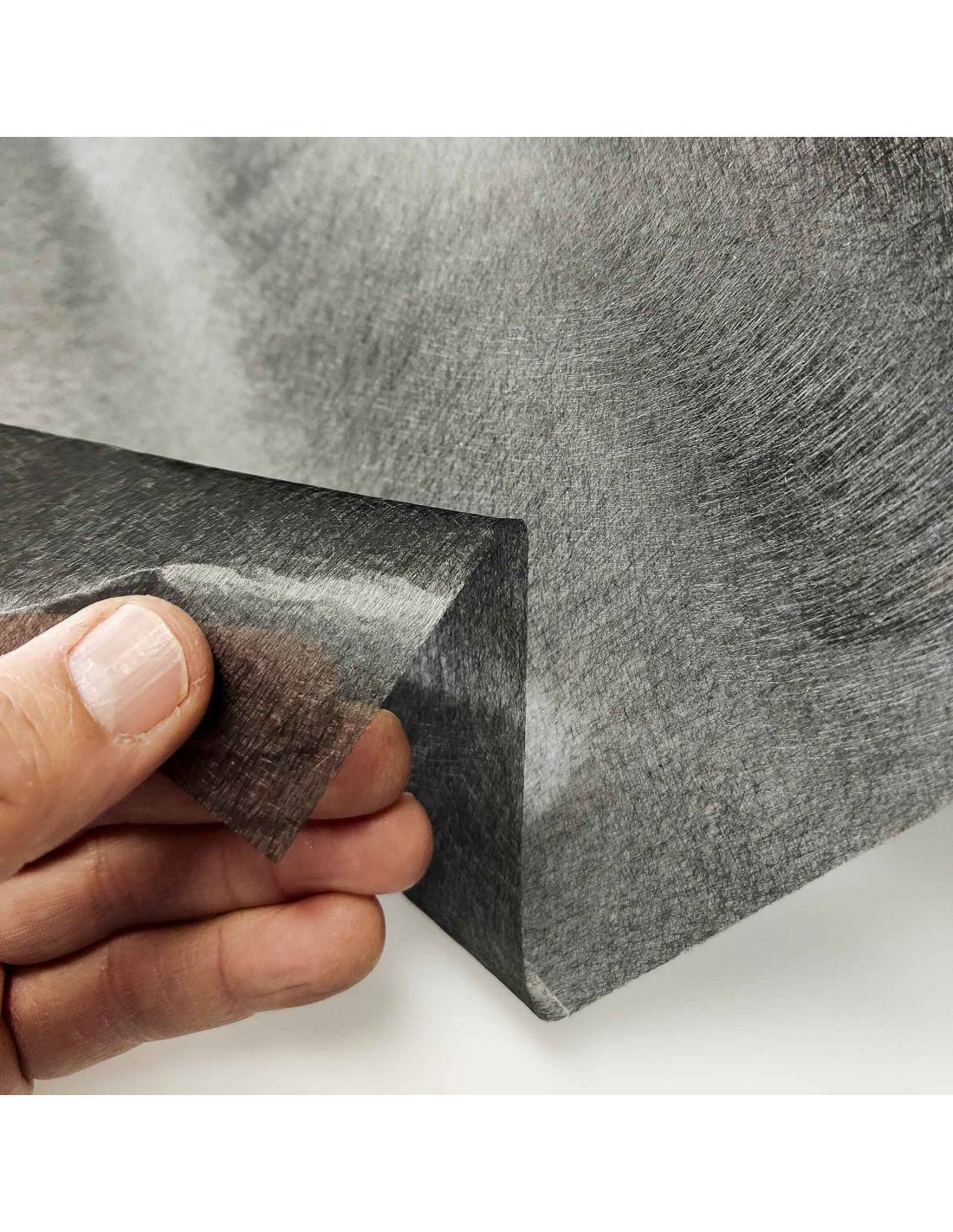

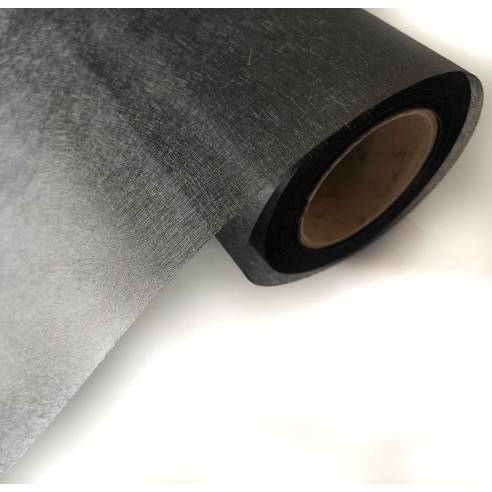

Optiveil 20301H 8 g/m2 Carbon Veil, 100 cm width
Optiveil 20301H 8 g/m2 Carbon Veil, 100 cm width
Optiveil 20301H 8 g/m2 Carbon Veil, 100 cm width
Optiveil 20301H 8 g/m2 Carbon Veil, 100 cm width
Optiveil 20301H 8 g/m2 Carbon Veil,...
Optiveil 20301H 8 g/m2 Carbon Veil, 100 cm width
Optiveil 20301H 8 g/m2 Carbon Veil, 100 cm width
Optiveil 20301H 8 g/m2 Carbon Veil, 100 cm width

Optiveil 20301H 8 g/m2 Carbon Veil, 100 cm width

20301H-1
19 Items
€17.50
€21.18 Tax incl. €17.50 Tax excl.
Tax excluded

By buying this product you can collect up to 2 point points. Your cart will total 2 points that can be converted into a voucher of €0.20.

OPTIVEIL® is a customisable range of highly porous nonwoven veils which are produced from short chopped engineered fibres. These materials have been specifically developed for use in advanced composite structures and are used in a variety of industries worldwide, including aerospace, defence, automotive, construction, industrial, consumer electronics and energy.

Key Benefits

The key benefits of OPTIVEIL® nonwovens include; excellent resin uptake, tuneable properties and exceptionally even fibre distribution. This makes OPTIVEIL® the ideal candidate for providing a high quality surface finish and effective surface engineering of composites, as well as aiding fabrication through acting as a lightweight support or carrier.

Choose the type of supply

‎

 Calculate Shipping Cost
Ratings and comments from our customers
( 0.0 / 5) - 0 feedback(s)

OPTIVEIL® is a customisable range of highly porous nonwoven veils which are produced from short chopped engineered fibres. These materials have been specifically developed for use in advanced composite structures and are used in a variety of industries worldwide, including aerospace, defence, automotive, construction, industrial, consumer electronics and energy.



Key Benefits

The key benefits of OPTIVEIL® nonwovens include; excellent resin uptake, tuneable properties and exceptionally even fibre distribution. This makes OPTIVEIL® the ideal candidate for providing a high quality surface finish and effective surface engineering of composites, as well as aiding fabrication through acting as a lightweight support or carrier.



Material Composition

  • DESCRIPTION: Wet-laid nonwoven carbon fibre veil
  • FIBRE TYPE: PAN Carbon
  • FIBRE LENGTH: 6 mm / 0.25” & 12 mm / 0.5”
  • FIBRE DIAMETER: 7 μm
  • BINDER TYPE: PVA (poly vinyl alcohol)

Key Properties

  • Electrical conductivity
  • High temperature resistance
  • High thermal stability
  • EMI shielding
  • Static dissipation
  • Chemical resistance

Process Capability

Suitable for all common composite manufacturing techniques including:

  • RTM
  • RIM
  • Compression moulding
  • Filament winding
  • Hand lay-up
  • Vacuum infusion
  • Pultrusion



MATERIAL COMPOSITION

  • Description: Wet-laid nonwoven carbon fibre veil
  • Fibre Type: PAN
  • Carbon Fibre Length: 6 mm / 0.25” & 12 mm / 0.5”
  • Fibre Diameter: 7 μm
  • Binder Type: PVA (poly vinyl alcohol)



MAIN PROPERTIES

  • Aerial Weight: 8 g/m2
  • Thickness at 10 kPa/((1.45lb/in²): 0.12 mm / 5 mil
  • Tensile Strength MD: 14 N/15 mm o 5 lb/in
  • Tensile Strength CD: 7 N/15 mm o 2.6 lb/in
  • *Surface Resistivity CD: 5-25 ohm/sq

*Surface resistivity is measured using a Vermason 75mm square contact block. The contact block is placed on a sample measuring 10cm x 10cm and a 1.0kg deadweight is loaded centrally on top of the contact block assembly.

Typical Applications

Surfacing veils for composites, adhesive carriers and supports, EMI shielding of composite enclosures, resistive heating, static control in assembly areas, use in fuel cell assemblies.

Accreditations

We provide assurance that all OPTIVEIL® materials are of the highest possible quality and our manufacturing processes are accredited to BS EN (AS) 9100: 2018 Global Aerospace Quality Standard, ISO 9001 : 2015 Quality Standard, ISO 14001 : 2015 Environmental Management and the OHSAS 18001 : 2007 Occupational Health & Safety Standard.

Type of supply

Optiveil 20301H Carbon Veil 8 g/m2, 1000 mm width x 1 m2

Optiveil 20301H Carbon Veil 8 g/m2, 1000 mm width x 5 m2

Optiveil 20301H Carbon Veil 8 g/m2, 1000 mm width x 25 m2

Optiveil 20301H Carbon Veil 8 g/m2, 1000 mm width x 100 m2

19 Items
8431252533787
