SphereCel PrintBlock, Core for Infusion and RTM 1,3 mm
By buying this product you can collect up to 1 point . Your cart will total 1 point that can be converted into a voucher of €0.10.

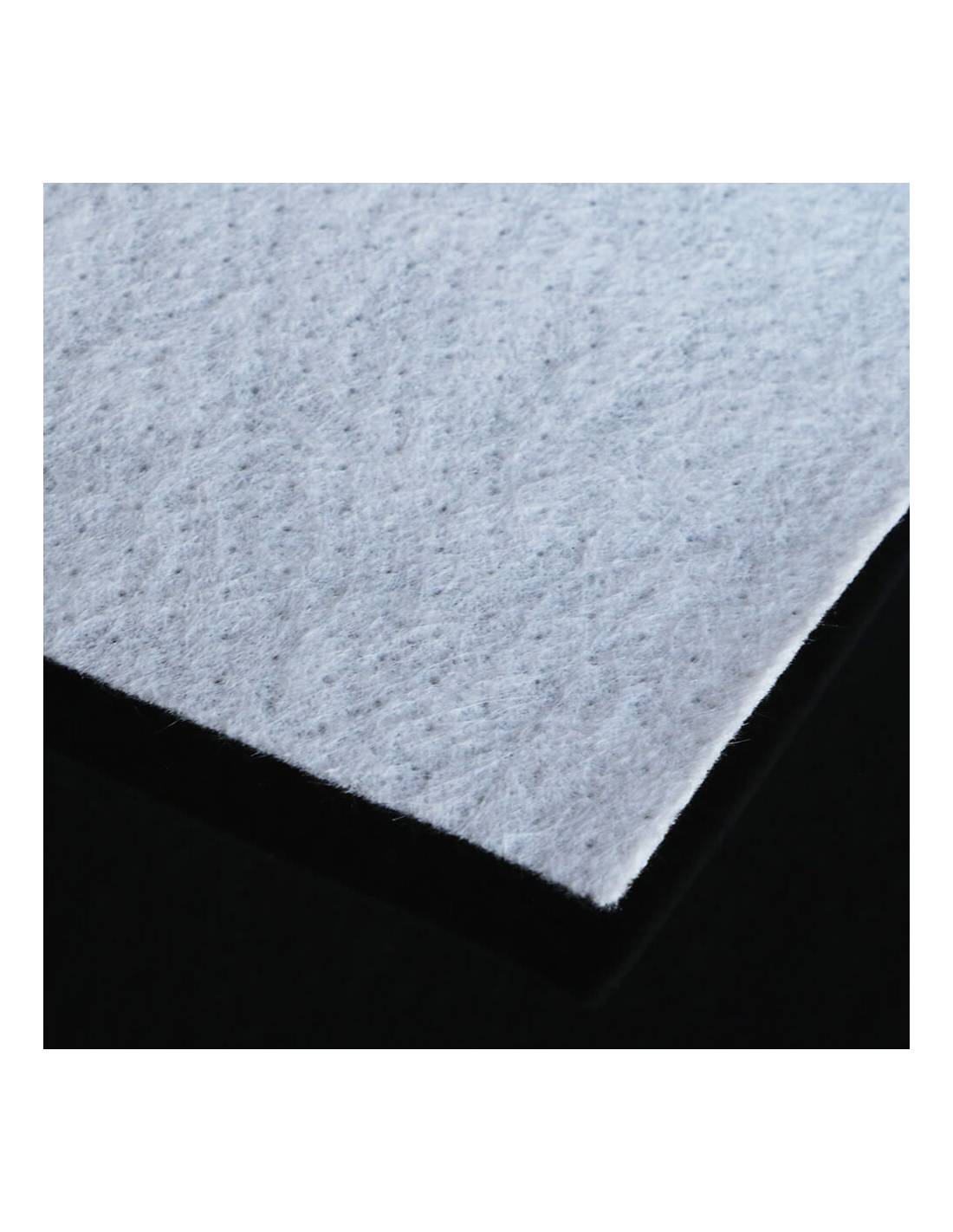

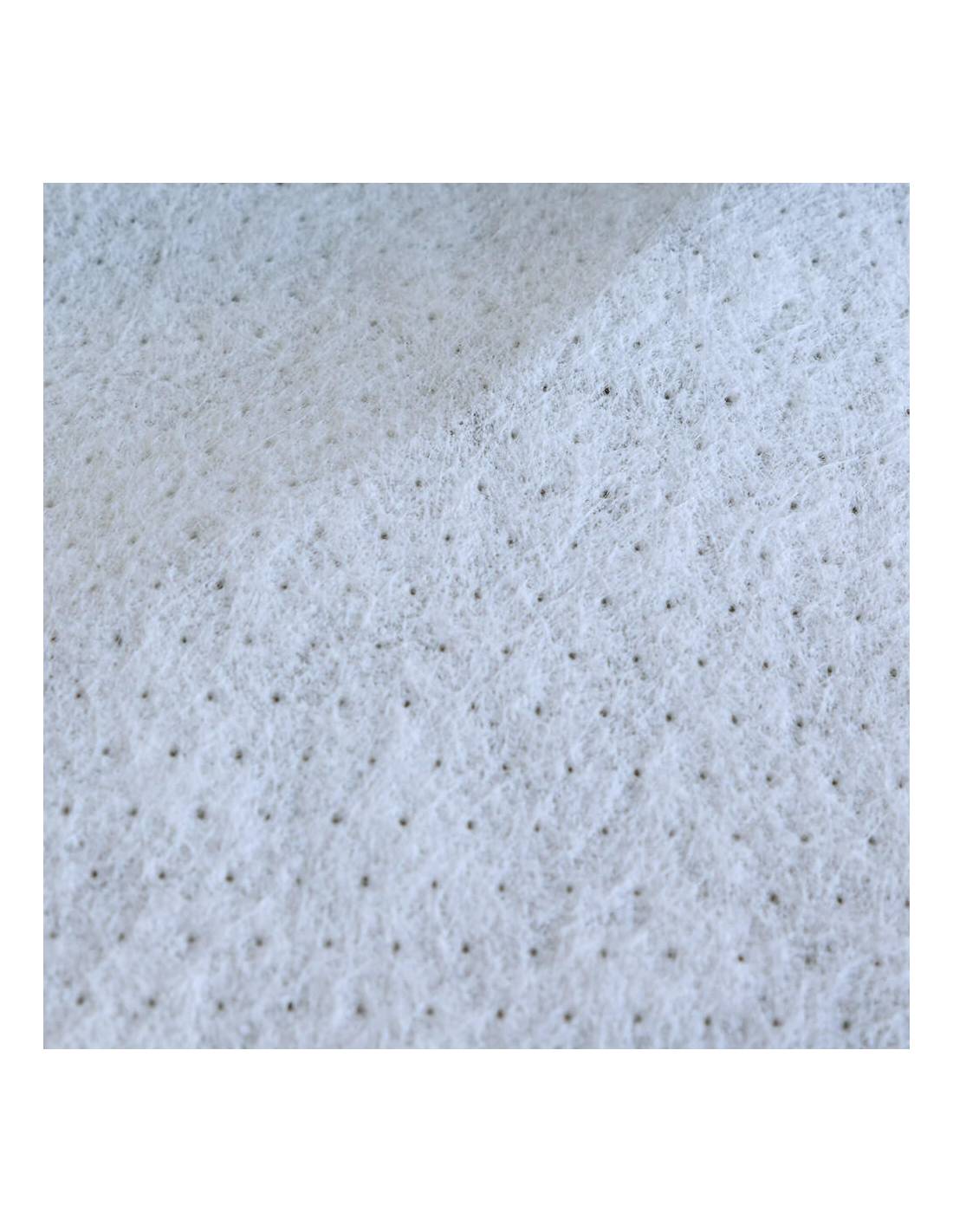

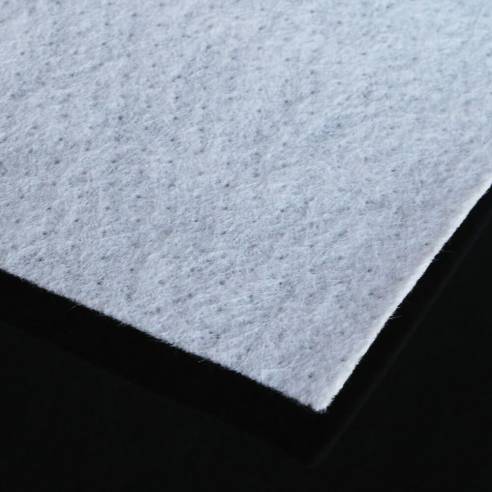

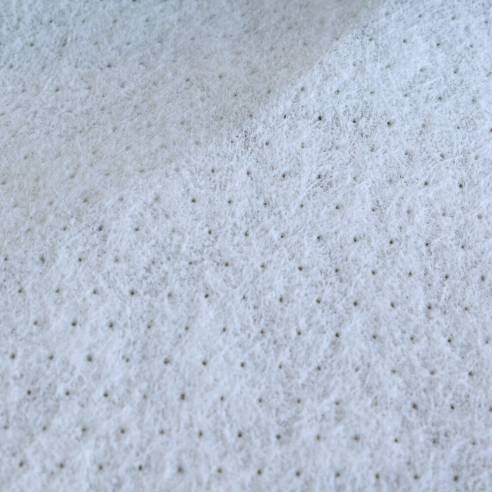

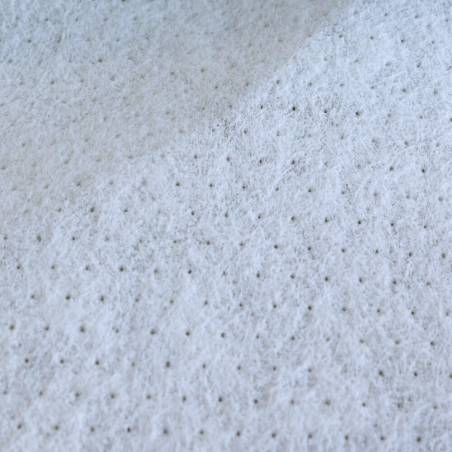

SphereCel PrintBlock is a non-woven core material which is used as a print-through protection media in closed molding applications.
Manufactured by embedding thermoplastic microspheres into fibreglass fibres and microperforated. During the impregnation phase, the micro-perforations will close up, resulting in uniform layer, which absobs reinforcement pattern that would otherwise print to the surface of finished parts.
SphereCel PrintBlock is a non-woven core material which is used as a print-through protection media in closed molding applications.
Manufactured by embedding thermoplastic microspheres into fibreglass fibres and microperforated. During the impregnation phase, the micro-perforations will close up, resulting in uniform layer, which absobs reinforcement pattern that would otherwise print to the surface of finished parts.
Base material: Glass veil, volumized with thermoplastic microspheres
Chacteristics: Perforated
Industry: Marine, Transportation, Mass Transit, Leisure, Industrial, and Wind Energy.
Processing: Regular established practices for composites closed mold lamination. Place layer of SphereCel PrintBlock immediately after skin-coat
Technical information
Value | |
Thickness | 1,3 mm |
Width | 130 cm |
Roll Length | 100 m |
Weight | 55g/m2 + 15% |
Weight per roll (approx.) | 7.2 Kg |
Storage
Material should be stored in original packaging, away from humidity, in well-ventilated rooms, at a moderate temperature.
Type of supply
SphereCel HX 2 mm x 1 m, supplied rolled
SphereCel HX 2 mm x 5 m, supplied rolled
SphereCel HX 2 mm x 25 m, supplied rolled
SphereCel HX 2 mm x 100 m (130 m2), supplied rolled
