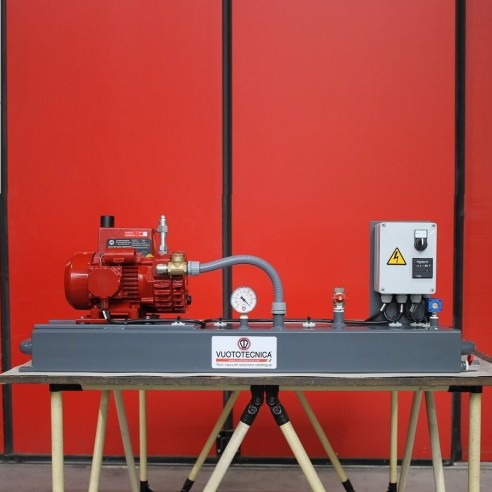

DO20VTL10MBS1 10 m3/h Vacuum Pump

Name: DO20VTL10MBS1 10 m3/h Vacuum Pump
Brand: Castro Composites
SKU: DO20VTL10MBS1
Price: 1895 EUR
Availability: OutOfStock

Reference DO20VTL10MBS1

In stock 0 Item

Out-of-Stock

€1,895.00

€2,292.95 Tax incl. €1,895.00 Tax excl.

Tax excluded

By buying this product you can collect up to 229 point points. Your cart will total 229 points that can be converted into a voucher of €22.90.

Pumpsets, like DO20VTL10MBS1, are independent vacuum-producing units with reduced size. DO20VTL10MBS1 is a 230 Volts motor & 50 Hz pump.

I accept the terms and conditions and the privacy policy.

Ratings and comments from our customers

( 0.0 / 5) - 0 feedback(s)

Pumpsets, like DO20VTL10MBS1, are independent vacuum-producing units with reduced size. DO20VTL10MBS1 is a 230 Volts motor & 50 Hz pump. Ideal for vacuum infusion and vacuum bagging processes in composites.

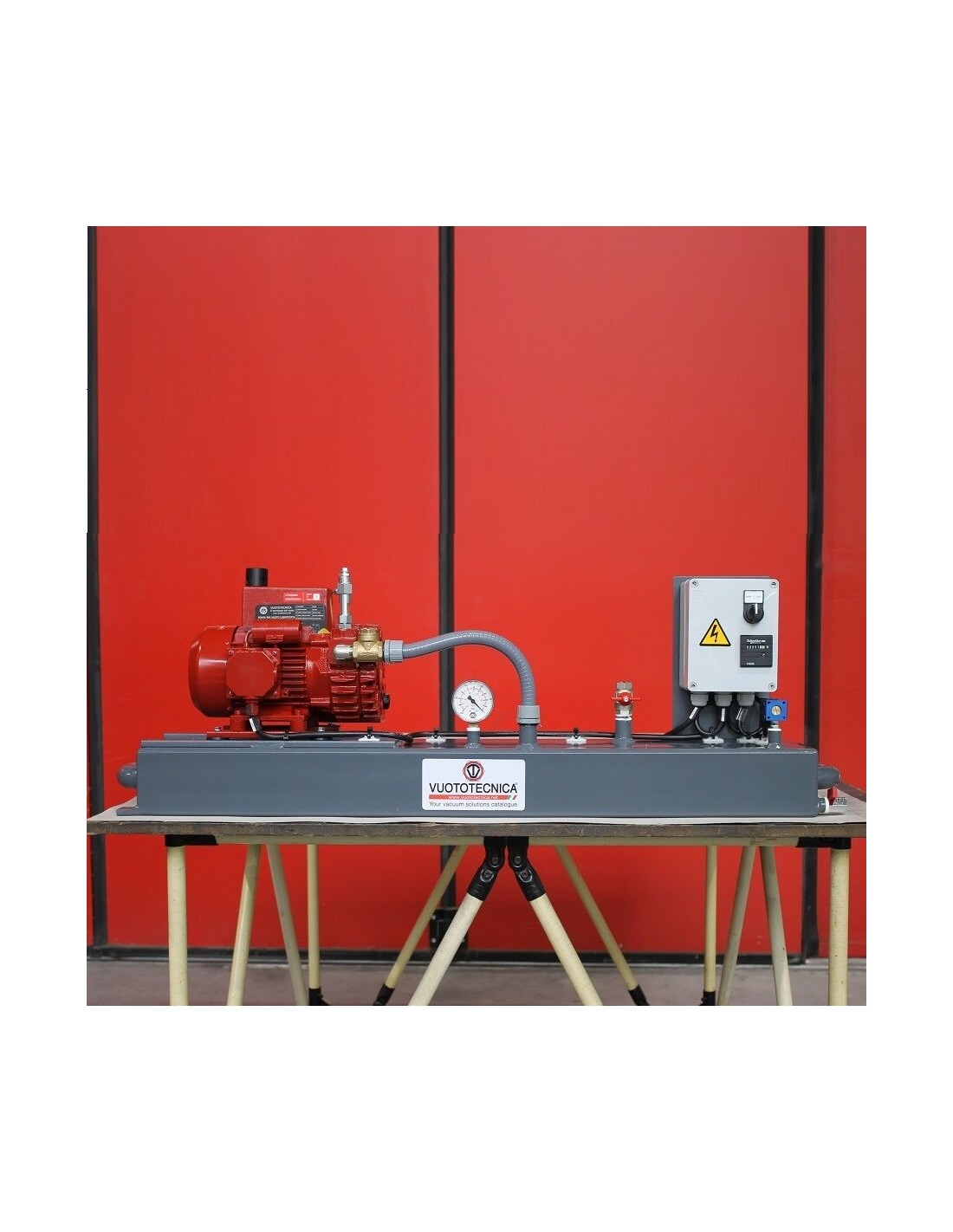

They are composed of:

- A small welded sheet steel tank with perfect vacuum seal.
- A low-capacity dry or lubricated rotating vane vacuum pump.
- A mini vacuum switch for adjusting the maximum vacuum level.
- A vacuum gauge for reading the vacuum level.
- A switchgear enclosed in a special casing.
- A manual valve for vacuum interception.
- A cock for condensation drainage.

The vacuum level, preset via the mini vacuum switch is automatically maintained in the tank. Mini pumpsets can also be supplied with single-phase or DC electric motors.

DO20VTL10MBS1 is a 230 Volts motor & 50 Hz pump

Weight: 50 kg

Synthetic oil ISO 100 recommended.
