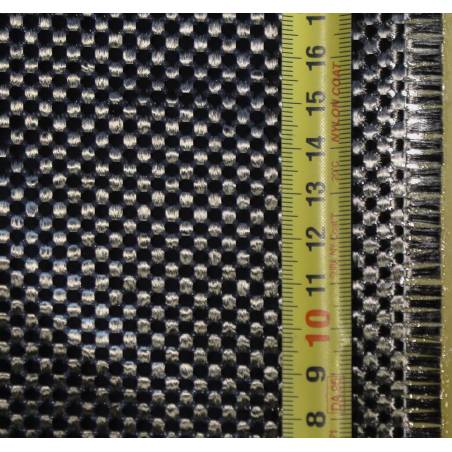

120 gsm Plain Carbon-Epoxy Prepreg VTC401-C120-PW-AS4C-3K-45% RW, width 1270 mm
120 gsm Plain Carbon-Epoxy Prepreg VTC401-C120-PW-AS4C-3K-45% RW, width 1270 mm
120 gsm Plain Carbon-Epoxy Prepreg VTC401-C120-PW-AS4C-3K-45% RW, width 1270 mm
120 gsm Plain Carbon-Epoxy Prepreg VTC401-C120-PW-AS4C-3K-45% RW, width 1270 mm

120 gsm Plain Carbon-Epoxy Prepreg VTC401-C120-PW-AS4C-3K-45% RW, width 1270 mm

401-C120-1
3 Items
€99.00
€99.00 Tax incl. €99.00 Tax excl.

By buying this product you can collect up to 9 point points. Your cart will total 9 points that can be converted into a voucher of €0.90.

VTC401 is an epoxy resin system designed to give an initial cure at low temperatures or snap cure at high temperatures with enhanced toughness, honeycomb bondability and higher service temperature, giving greater flexibility in component manufacture. It can be supplied on a variety of fabrics in UD format to meet your cost and manufacturing requirements.

Typical applications: General purpose & Aesthetic carbon parts

Roll width: 1270 mm

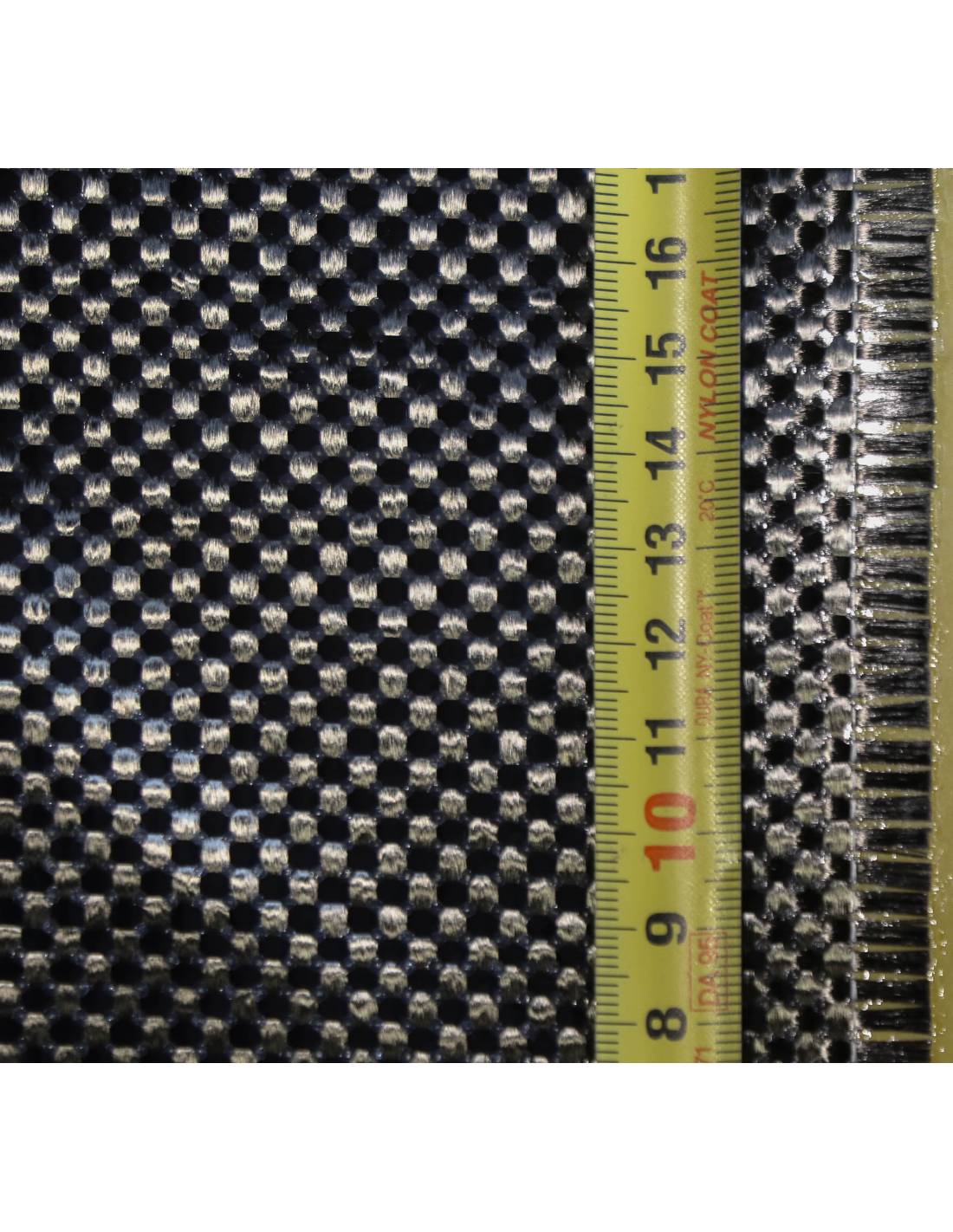

Type of carbon fabric: HexTow AS4C 3K. High Strength. Plain woven.

  • Tensile Strength for AS4C: 4620 MPa
  • Tensile Modulus for AS4C: 231 GPa

Choose the type of supply

‎

 Calculate Shipping Cost
Ratings and comments from our customers
( 0.0 / 5) - 0 feedback(s)

Introduction

VTC401 is an epoxy resin system designed to give an initial cure at low temperatures or snap cure at high temperatures with enhanced toughness, honeycomb bondability and higher service temperature, giving greater flexibility in component manufacture. It can be supplied on a variety of fabrics in UD format to meet your cost and manufacturing requirements.

Typical applications: General purpose & Aesthetic carbon parts

Roll width: 1270 mm

Type of carbon fabric: HexTow AS4C 3K. High Strength. Plain woven.

  • Tensile Strength for AS4C: 4620 MPa
  • Tensile Modulus for AS4C: 231 GPa

Key Features & Benefits

  • Cure temperature from 65°C to 120°C
  • Service temperature up to 135°C after post cure
  • Low CTE and shrinkage
  • Work life at 20°C: 21 days
  • Storage life at -18°C: 12 months
  • Very low VOC content – no added solvents during manufacture

Snap cure available fot hot press moulding - consult us for details.

Type of supply

120 gsm Plain Carbon-Epoxy Prepreg VTC401-C120-PW-AS4C-3K-45% RW x 1 m2, supplied rolled in cardboard box

120 gsm Plain Carbon-Epoxy Prepreg VTC401-C120-PW-AS4C-3K-45% RW x 5 m2, supplied rolled in cardboard box

120 gsm Plain Carbon-Epoxy Prepreg VTC401-C120-PW-AS4C-3K-45% RW x 25 m2, supplied rolled in cardboard box

Type
Plain
No. of K
3K
Width
127 cm
3 Items
8431252544714
