HPE-V2 Elastomer System with adjustable Hardness 40-85 SHORE A
By buying this product you can collect up to 9 points. Your cart will total 9 points that can be converted into a voucher of €0.90.
High performance elastomer system designed for the production of mechanically and/or thermally stressed technical parts, moulds and models, with a new isocyanate component for the higher hardnesses.
High performance elastomer system designed for the production of mechanically and/or thermally stressed technical parts, moulds and models, with a new isocyanate component for the higher hardnesses.
This system, based on 2 polyols and 2 isocyanates, allows to answer the users’ needs on a very wide range of hardnesses, while keeping the same high level of performance, be it in Shore A or in Shore D.
Properties
Curing at room temperature (18 – 20°C).
Good elongation resistance.
Very good tear resistance, even on notched parts.
Good chemical and thermal resistance.
Mixing components according to the required hardness:
HARDNESS |
40A |
50A |
60A |
70A |
85A |
||
SL240000 HPE 40 A Polyol (g) |
100 |
75 |
50 |
25 |
|
||
SL285000 HPE 85 A Polyol (g) |
|
8 |
16 |
24 |
32 |
||
SL000105 HPE 40-85 Iso (g) |
100 |
100 |
100 |
100 |
100 |
||
Type of supply

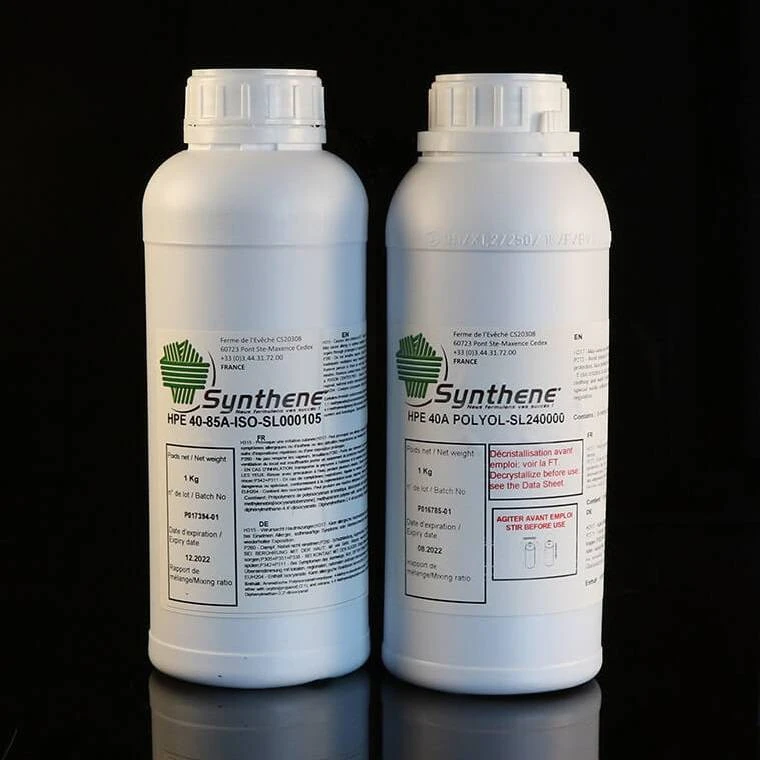

SHORE 85A: 1 kg Polyol HPE 85A + 1 kg Isocianate HPE 40-85
SHORE 40A: 1 kg Polyol HPE 40A + 1 kg Isocianate HPE 40-85
SHORE 50A-70A: 1 kg Polyol HPE 40A + 1 kg Polyol HPE 85A + 1 kg Isocianate HPE 40-85
