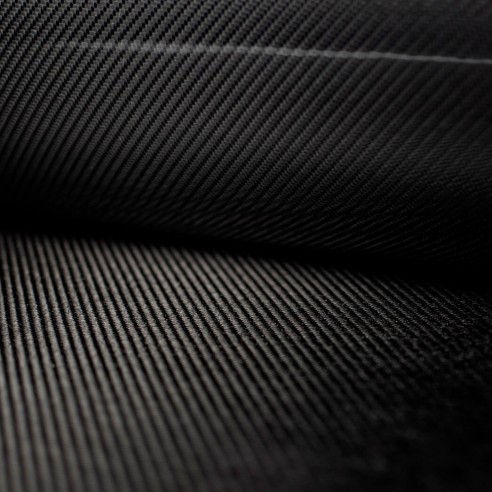

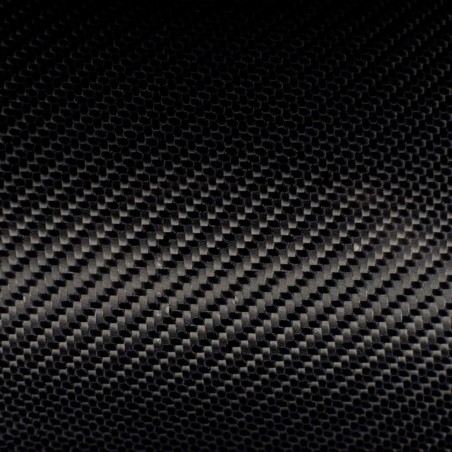

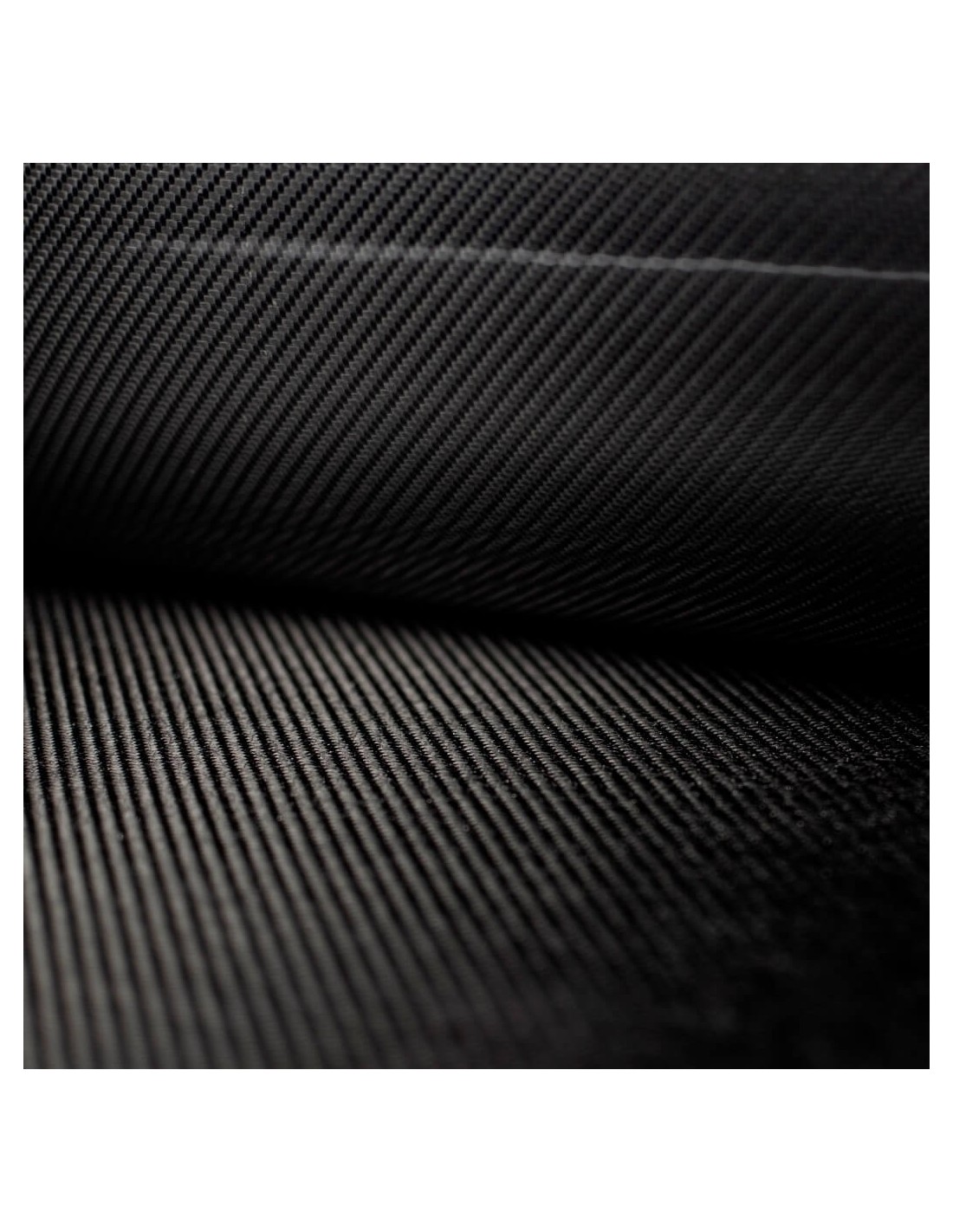

245 g/m2 ADE-FIX Self-Adhesive Carbon Fabric 2x2 Twill GG245 T WF2, 100 cm width

ADE-FIX is a recent introduction from G.Angeloni. ADE-FIX is mainly dedicated to the RTM process and has been developed for projects where a high quality surface finish and a perfect fabric design is essential.

ADE-FIX combines stabilising webs (WF1, WF2 and WF3) applied to one surface with a high tack epoxy coating applied to the opposite surface. The epoxy self-adhesive coating is fully compatible with and promotes a perfect bond to any epoxy resin system.

• ADE-FIX is a special surface high-tack epoxy coating (IMP 373 R) that is able to offer a perfect adhesive of thermofixed dry fabrics to any mould.
• IMP 373 self-adhesive coating is compatible with most epoxy systems.
• ADE-FIX is simple to use over most mould surfaces.
• Due to the excellent self adhesion of ADE-FIX, it vastly reduces problems caused when injecting resin at high pressure.

Twill carbon fabric for high performance applications where high strength and low weight are required.

Main Characteristics

• Type of yarn: HR Carbon Fiber Mitsubishi Pyrofil TR30S-3K ( 3000 filaments per strand of yarn) and 200 tex

• Roll width: 100 cm.
• Total Mass per unit area: 263 g/m2
• Thickness: 0,25 mm +-2,5%

Thermoplastic WEB Properties

• Type: WF2 Copolyamide (A side of dry fabric)
• Mass unit per area: 12 g/m2
• Melting range: 110-120 ºC
• Heat resistance: 105 ºC

Adhesive Properties

• Type/Nature: IMP 373 / Epoxy resin (B side of dray fabric)
• Mass unit per area: 12 g/m2
• Shelf Life: 6 months at 23 ºC

Type of supply

245 g/m2 Carbon Fabric 2x2 Twill GG245 T WF2-IMP 373-A Side x 1 m2 supplied rolled in cardboard box

245 g/m2 Carbon Fabric 2x2 Twill GG245 T WF2-IMP 373-A Side 100 cm width x 5 m2, supplied rolled in cardboard box

245 g/m2 Carbon Fabric 2x2 Twill GG245 T WF2-IMP 373-A Side 100 cm width x 25 m2, supplied rolled in cardboard box

245 g/m2 Carbon Fabric 2x2 Twill GG245 T WF2-IMP 373-A Side 100 cm width x 100 m2, supplied rolled in cardboard box
