50 gsm Plain Glass-Epoxy Prepreg VTC401-G50-STYLE 1080-50% RW, Width 1270 mm

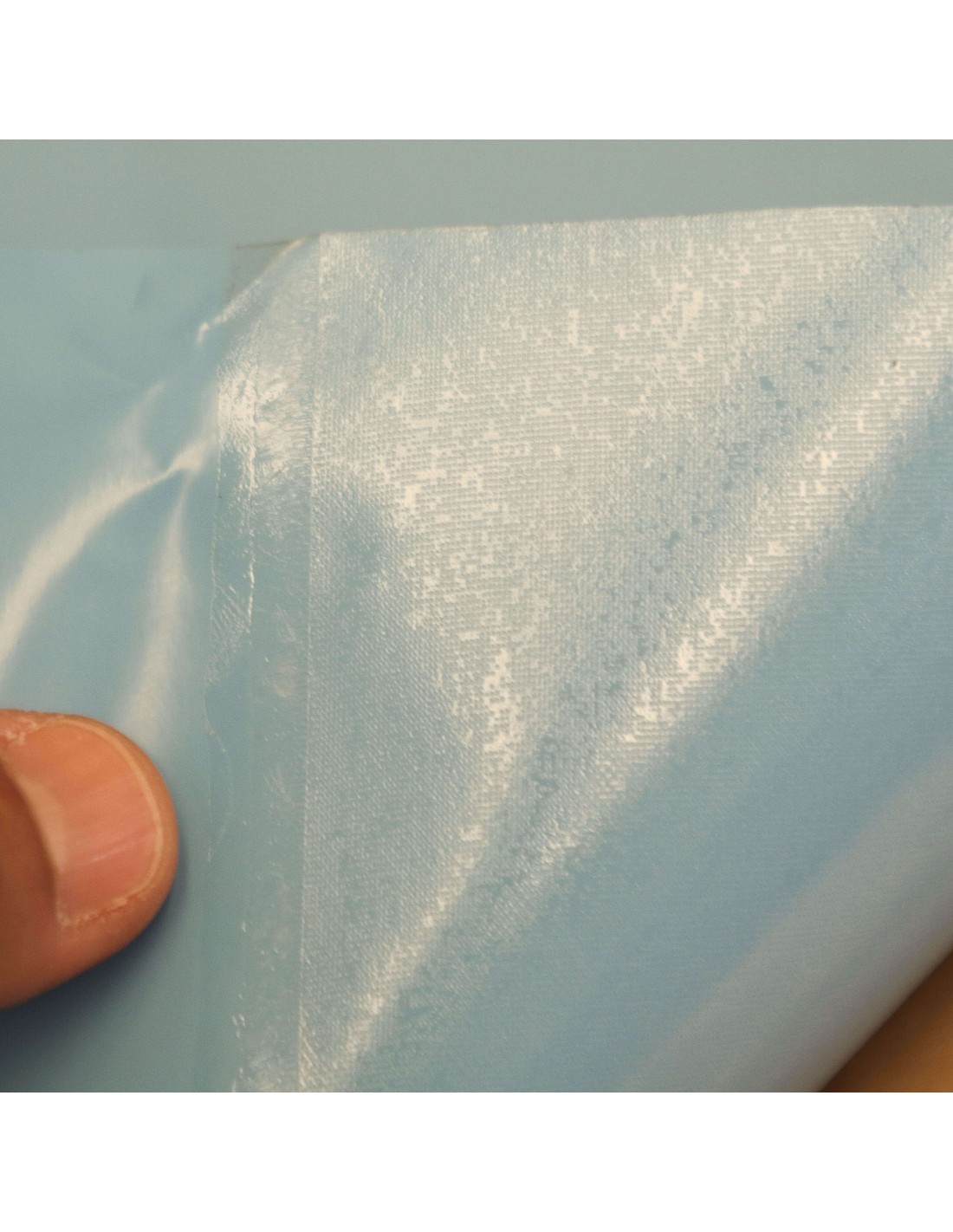

105 gsm Plain Glass-Epoxy Prepreg MTC510-G105-PW-45%RW, 1270 mm wide

SHD3073-1270-1
4 Items
€58.00
€58.00 Tax incl. €58.00 Tax excl.

By buying this product you can collect up to 5 point points. Your cart will total 5 points that can be converted into a voucher of €0.50.

The carbon-epoxy prepreg MTC510 is manufactured with an epoxy resin prepared to cure within a variable temperature range of 80°C to 120°C.
It is a high-toughness epoxy resin designed for the fabrication of parts that can be supplied with a wide variety of fibers and in a unidirectional format.

Typical Applications: General

Roll Width: 1270 mm

Choose the type of supply

‎

 Calculate Shipping Cost
Ratings and comments from our customers
( 0.0 / 5) - 0 feedback(s)

MTC510 is an epoxy resin system designed to cure between 80°C and 120°C allowing flexibility in component manufacture. It is a toughened epoxy resin system designed for component manufacturing that can be supplied on a variety of fabrics and in UD format.

Key Features & Benefits

  • Reinforcement fibre type: plain weave glass fabric <!-- [if gte mso 9]>
  • Weight: 105 g/m2.
  • Roll Width: 1270 mm.
  • Content of epoxy resin: 45 % by weight.
  • Cure temperature from 80°C - 120°C
  • Service temperatures up to 135°C after postcure.
  • Low CTE and shrinkage.
  • Work life at 20°C: 28 days.
  • Storage life at -18°C: 12 months.
  • Very low VOC content – no added solvents during manufacture.
  • Excellent surface finish.

Storage & Out Life

The material should be kept frozen at -18°C. It must be kept sealed in a polythene bag which must not be opened until fully thawed to room temperature. If the material is not fully used, then the material must be resealed in the polythene bag to prevent moisture absorption.

Type of Supply

E-glass epoxy prepreg  MTC510-G105-PW-45%RW, 1270 mm x 1 m2, supplied rolled in cardboard box

E-glass epoxy prepreg  MTC510-G105-PW-45%RW, 1270 mm x 5 m2, supplied rolled in cardboard box

E-glass epoxy prepreg  MTC510-G105-PW-45%RW, 1270 mm x 25 m2, supplied rolled in cardboard box

E-glass epoxy prepreg  MTC510-G105-PW-45%RW, 1270 mm x 50 m2, supplied rolled in cardboard box

Type
Plain
Fire retardant
No
Width
127 cm
4 Items
8431252554829
