245 g/m2 2x2 Twill 3K Carbon Fabric 245T Style 462, 150 cm width
20503-25
0 Item
€1,499.00
€1,813.79 Tax incl.
€1,499.00 Tax excl.
Tax excluded
By buying this product you can collect up to
181
points.
Your cart will total 181
points that can be converted into a voucher of
€18.10.
Twill carbon fabric for high performance applications where high strength and low weight is required. Compatible with all type of thermosetting resins such as epoxies, BMIs and phenolics. Suitable for hand lay-up, infusion or RTM (Inyection).

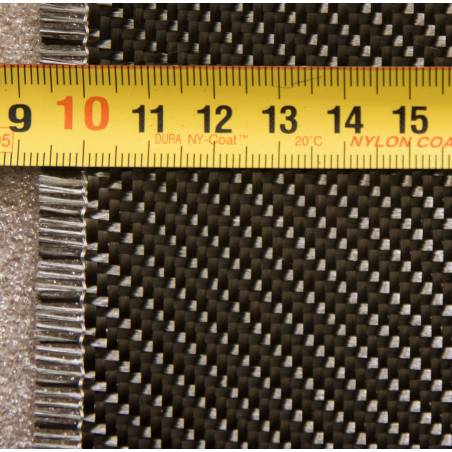

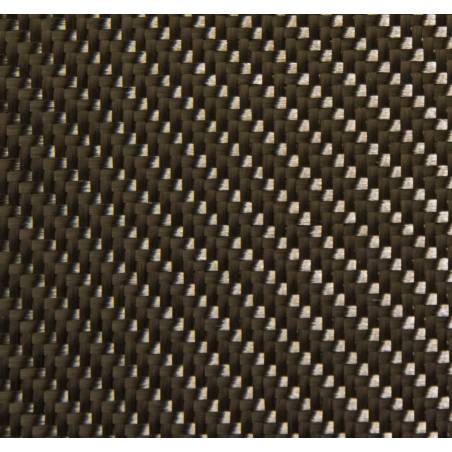

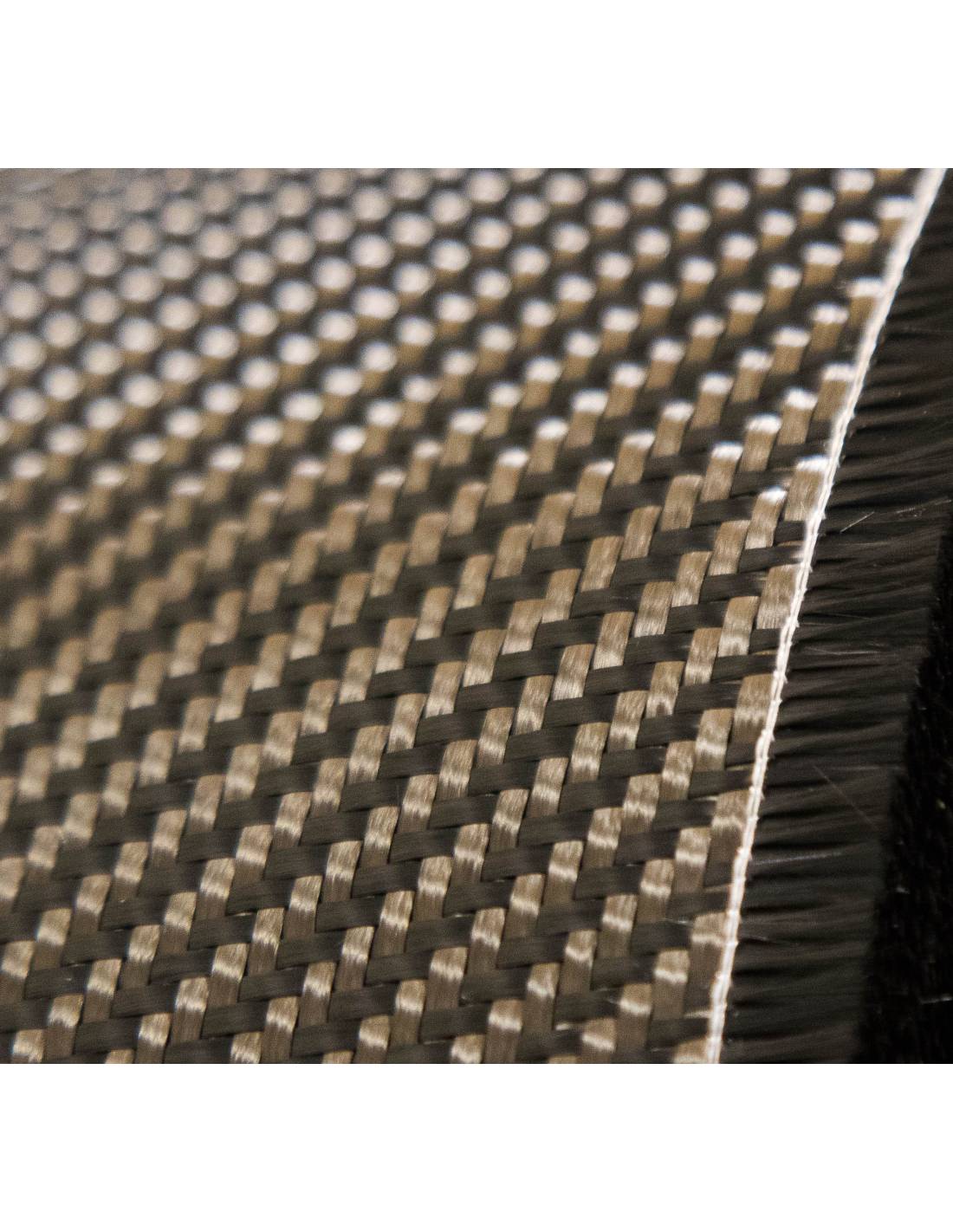

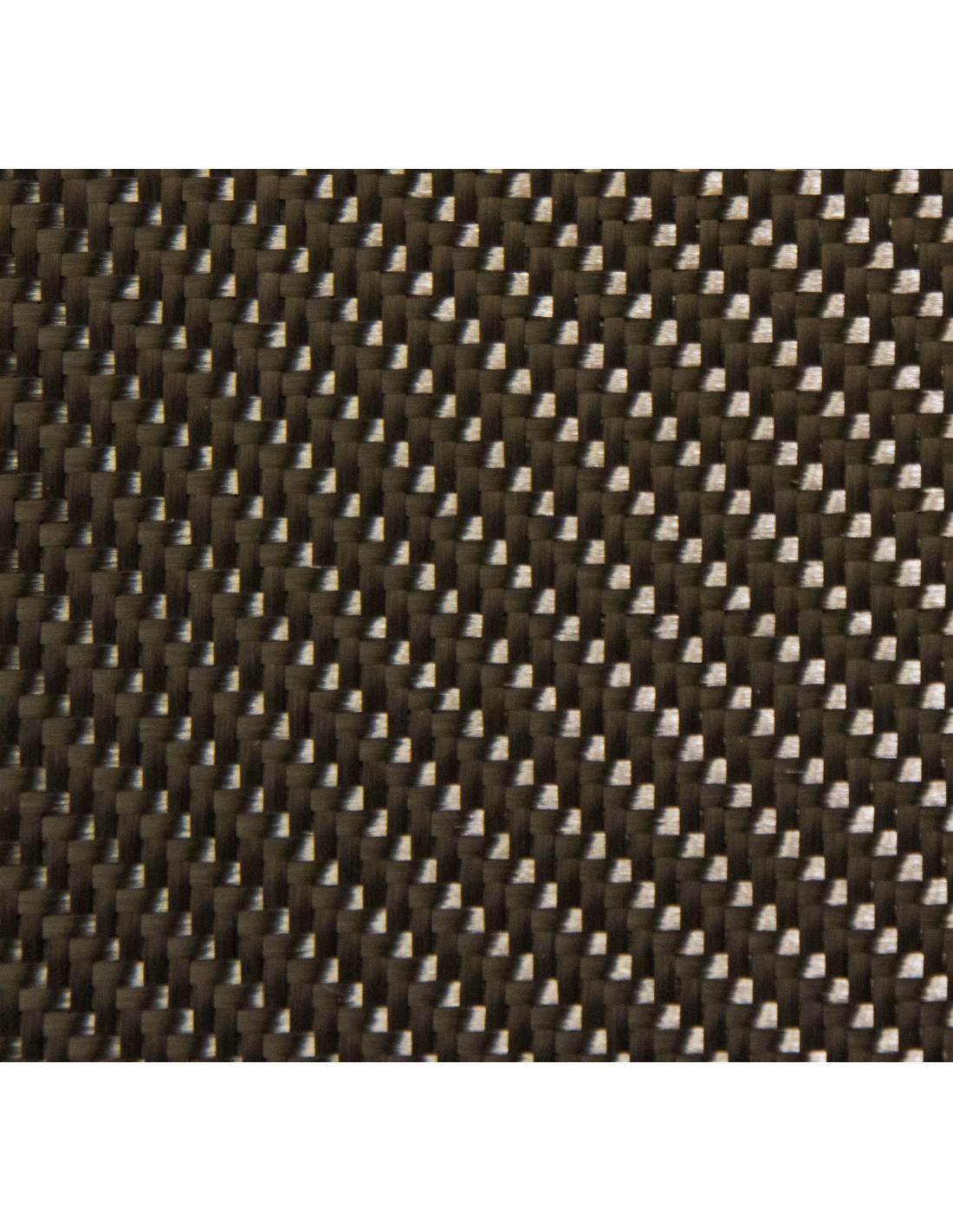

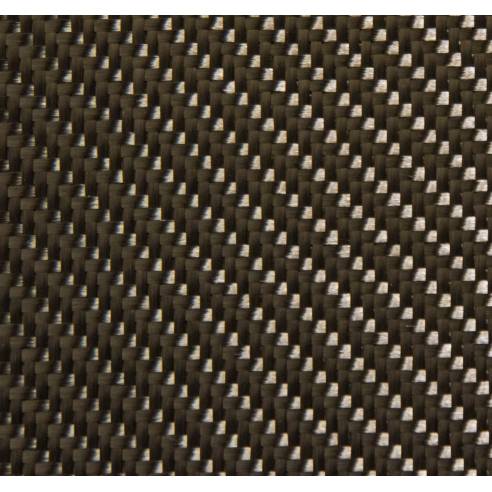

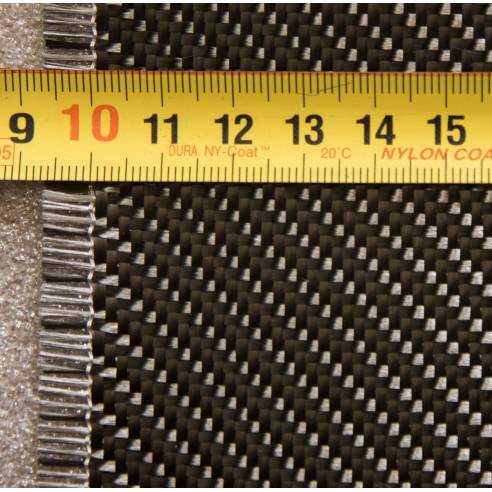

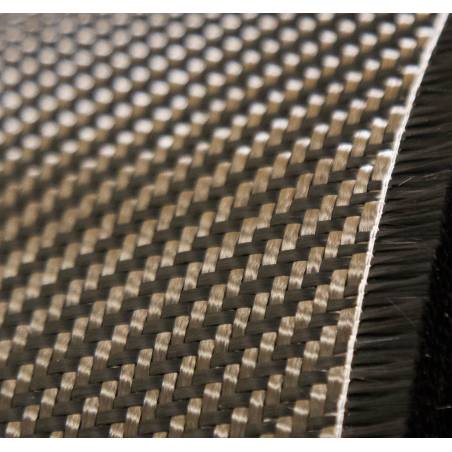

It is a 245 gsm carbon fabric. It has 6.1 warp threads/cm and 6.1 weft threads/cm. It is made using a 2/2 twill weave.
The thread is a 3K carbon thread (3000 filaments).
245T 3K Style 462 serves as an excellent surface layer and is used in areas where the surface finish and consistency must be of the very highest standard.
Type of carbon yarn: FT300B 3K 40B, with sizing for epoxy, BMI and phenolic resins.
Roll width: 150 cm.
Manufacturer: ECC
Calculate Shipping Cost
Ratings and comments from our customers
2x2 twill carbon fabric designed for high-performance applications requiring excellent mechanical strength and low weight.
Ideal for use with all types of thermoset resins (epoxy, BMI and phenolic) through hand lay-up, infusion or RTM (injection) processes.
245T 3K Style 462 is a 245 g/m² carbon fabric with a 2/2 twill weave.
The fiber used is a 3K carbon tow (3000 filaments).
Carbon fiber type: FT300B 3K 40B, with sizing compatible with epoxy, BMI and phenolic resins.
Roll width: 150 cm.
Manufacturer: ECC.
Available supply formats
- Size – 37.4 kg (152.65 m²), supplied rolled and boxed.
- Size – 25 m (37.5 m²), supplied rolled and boxed.
- Size – 22 m (33 m²), supplied rolled and boxed.
- Size – 5 m (7.5 m²), supplied rolled and boxed.
- Size – 1 m (1.5 m²), supplied rolled and boxed.
- Type
- Twill
- Fixation
- No
- No. of K
- 3K
- Width
- 150 cm
