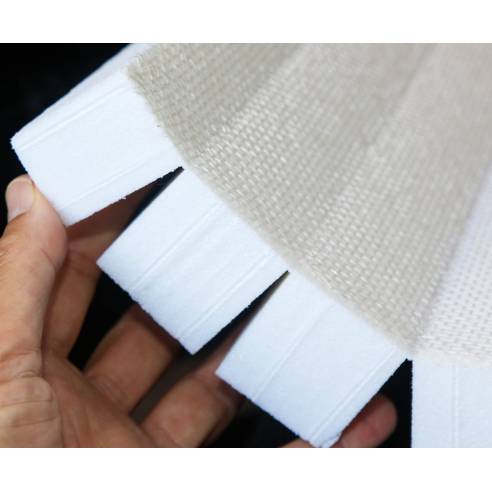

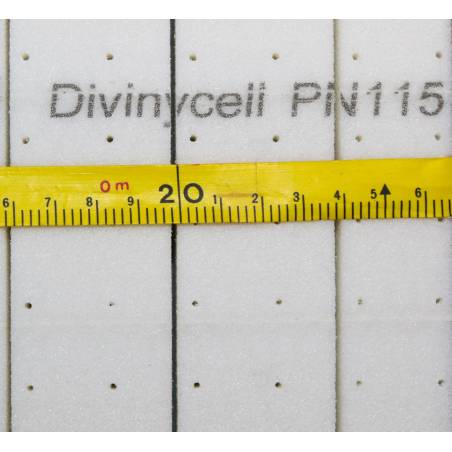

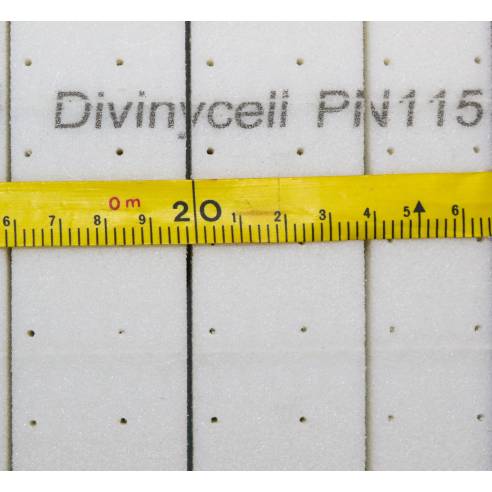

Divinycell PN 115 PFC ODC 45 mm PET Foam, 115 kg/m3 / perforated and One-directional cut

Divinycell PN is a structural thermoplastic core material perfectly suited in a variety of sandwich applications to increase performance and reduce weight. Divinycell PN is used in industrial, transportation, marine and wind applications. It is easy to machine and has good dimensional stability at elevated temperatures. It is suitable for a variety of processes including infusion, prepreg and press bonding.
The material has a stable closed cell structure and is insensitive to moisture, decay or rot, making it an excellent substitute for organic materials such as balsa and plywood. High density Divinycell PN (PN200 and PN250) is particularly suited for flooring, decking, local inserts in the way of fittings; either tapped or bolted through and has very good screw retention. Divinycell PN is 100% recyclable.

Divinycell PN has got excellent chemical resistance and is compatible with all commonly used resin systems such as polyester, epoxies, vinyl esters and more. With its high processing temperature performance and good dimensional stability at elevated processing temperatures, it can be readily used in infusion or with a wide variety of prepreg systems as an alternative to press bonding or contact moulding.

Divinycell PN 115 is the 115 kg/m3 density product.

Main Properties

• High temperature resistance
• Recyclable
• Thermoformable
• Good chemical resistance
• Good mechanical properties
• Minimum resin uptake

Applications

• Wind blades
• Nacelles
• Tanks and Covers
• Panelling
• Sport goods
• Goods Transport
• Furnitures

Type of supply

Complete box of 9.29 m² with the following 45 mm sheets in variable dimensions: 700x1200 mm, 220x1200 mm, 300x1200 mm, 700x1200 mm, 1140x1200 mm, 260x1200 mm, 1140x1200 mm, 460x1200 mm, 1140x1200 mm, 540x1200 mm and 1140x1200 mm.
