INFUSION PVC FOAM Divinycell H80 35 mm PFC ODC / perforated and one-directional cuts
PVCH8035SOMOZ
1 Item
€750.00
€750.00 Tax incl.
€750.00 Tax excl.
By buying this product you can collect up to
75
points.
Your cart will total 75
points that can be converted into a voucher of
€7.50.
PVC foam with a density of 80 kg/m³, ideal for infusion processes with thermoset resins: urethane-acrylics, polyester, vinylester, epoxy, etc.
Surplus production of wind turbine blades.

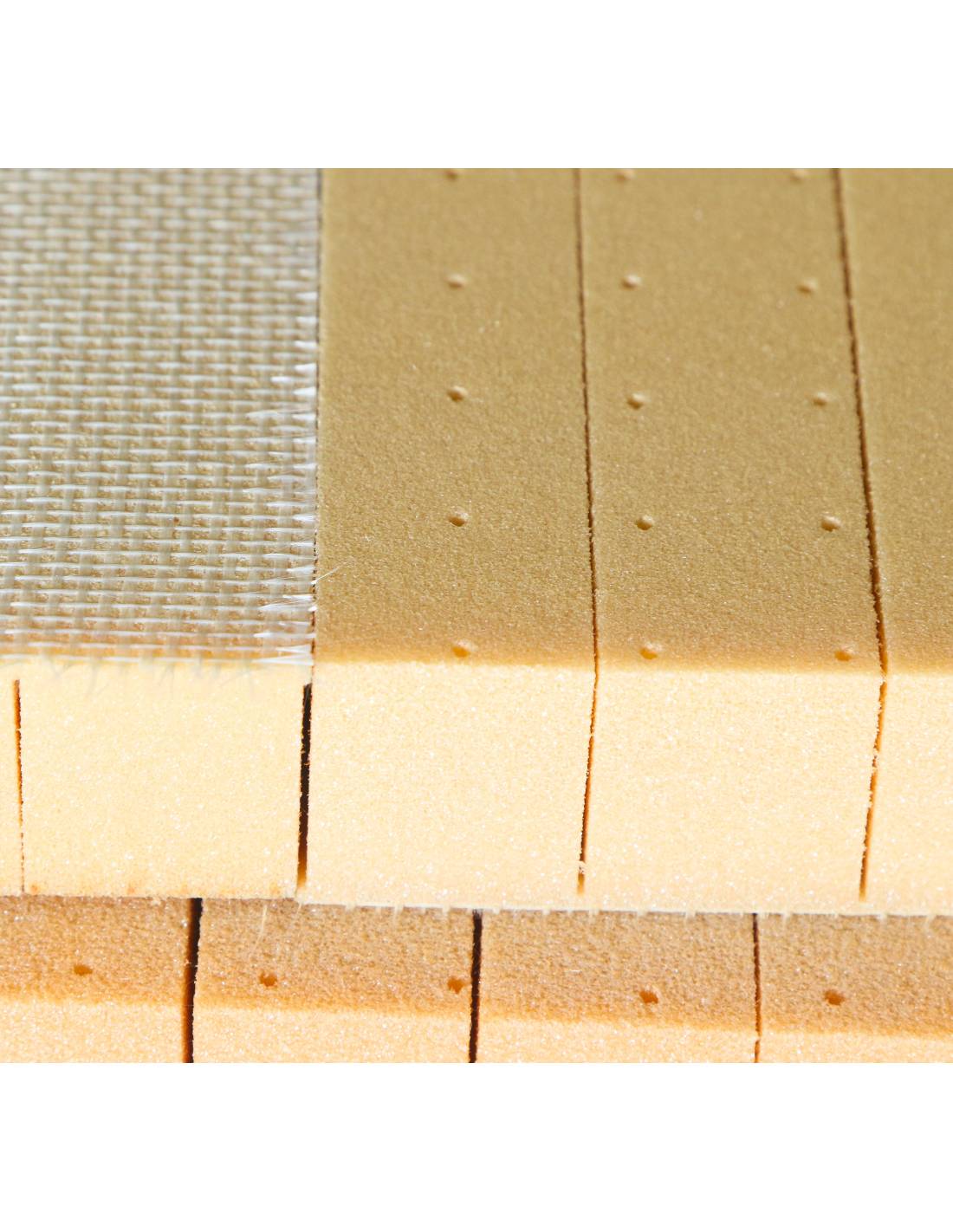

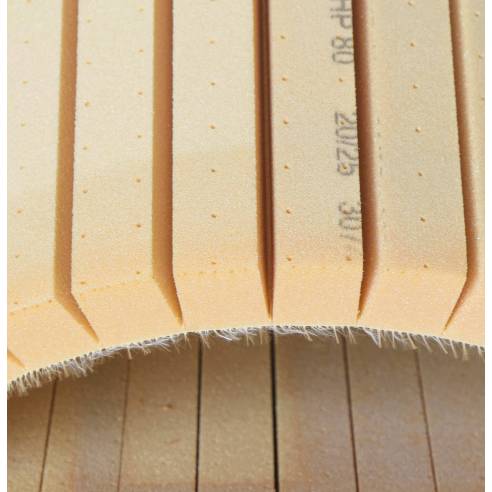

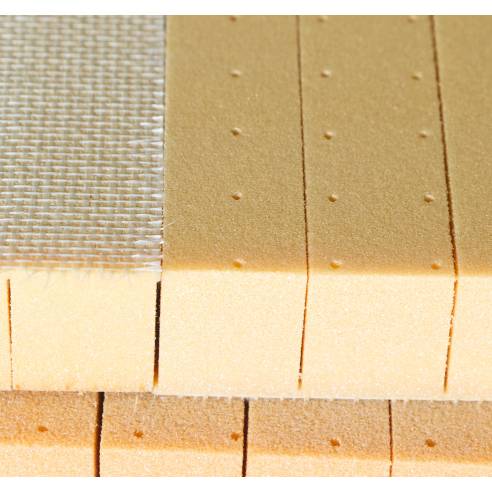

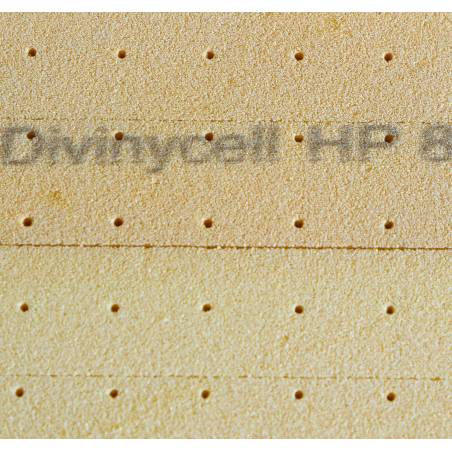

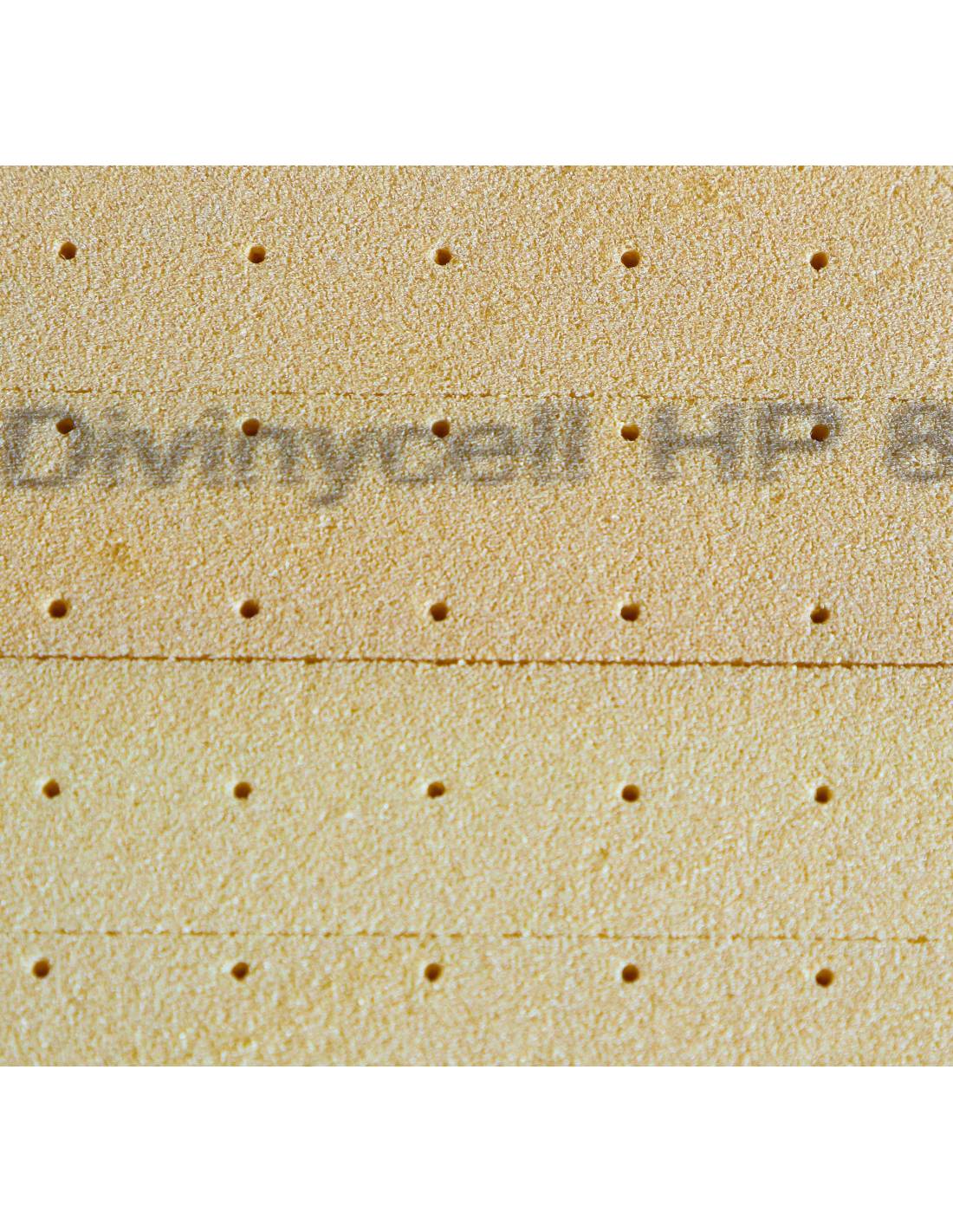

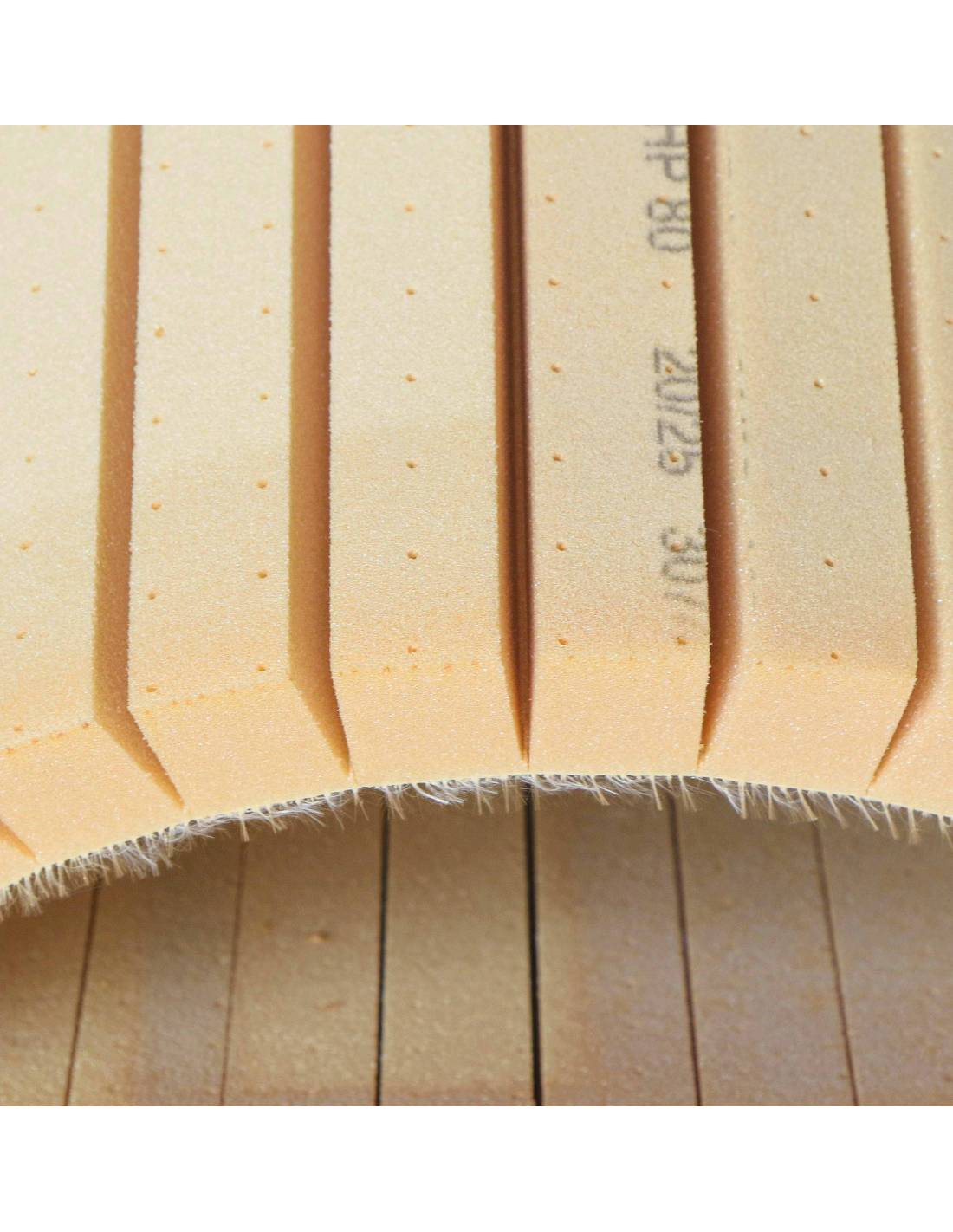

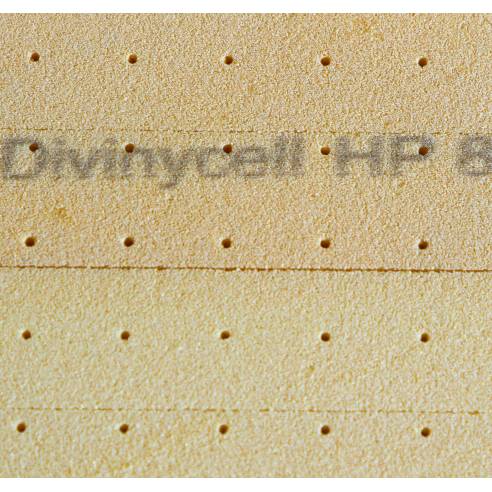

The PFC ODC presentation consists of scrim sheets (with glass mesh on the back), with through holes every 2 cm and deep longitudinal cuts in one direction, spaced 3 cm apart, for better resin flow.
Calculate Shipping Cost
Ratings and comments from our customers
Specifications
Description: Divinycell H80 PVC foam with a nominal density of 80 kg/m³. This material is ideal for infusion processes with thermosetting resins such as urethane-acrylic, polyester, vinyl ester, epoxy, etc. It offers excellent mechanical properties at low weight, low water absorption, good chemical resistance, and thermal/acoustic insulation.
Applications: Divinycell H80 foam is ideal for applications subject to fatigue, impact, and dynamic loads, with a proven track record in the production of wind turbine blades, marine industry, land transport, and civil engineering.
Mechanical Properties (Divinycell H80)
| Property | Nominal Value | Minimum Value |
|---|---|---|
| Compressive Strength | 1.4 MPa | 1.15 MPa |
| Compressive Modulus | 90 MPa | 80 MPa |
| Tensile Strength | 2.5 MPa | 2.2 MPa |
| Tensile Modulus | 95 MPa | 85 MPa |
| Shear Strength | 1.15 MPa | 0.95 MPa |
| Shear Modulus | 27 MPa | 23 MPa |
| Shear Strain | 30% | - |
| Density | 80 kg/m³ | - |
All values measured at +23°C.
1. Properties measured perpendicular to the plane.
Nominal value is an average value of a mechanical property at a nominal density.
Minimum value is a minimum guaranteed mechanical property a material has independently of density.
Other Technical Characteristics (Divinycell® H80)
| Characteristic | Unit | H80 | Test Method |
|---|---|---|---|
| Density Variation | % | +9/-16% | - |
| Thermal Conductivity | W/(m-K) | 0.031 | EN 12667 |
| Coeff. Linear Heat Expansion | x10⁻⁶/°C | 40 | ISO 4897 |
| Heat Distortion Temperature | °C | +125 | DIN 53424 |
| Continuous Temp Range | °C | -200/+70 | - |
| Max Process Temp | °C | +90 | - |
| Dissipation Factor | - | 0.0005 | ASTM D 2520 |
| Dielectric Constant | - | 1.09 | ASTM D 2520 |
| Poisson’s Ratio | - | 0.4 | ASTM D638-08 |
1. Typical values
2. Thermal conductivity at +20°C.
3. Standard deviation is 0.045. Continuous operating temperature is typically -200ºC to +70ºC. The foam can be used in sandwich structures, for outdoor exposure, with external skin temperatures up to +85ºC. For optimal design of applications used in high operating temperatures in combination with continuous load, please contact Diab Technical Services for detailed design instructions.
Maximum processing temperature is dependent on time, pressure, and process conditions. Therefore users are advised to contact Diab Technical Services to confirm that Divinycell H is compatible with their particular processing parameters.
Product Storage
The shelf life of Divinycell is unlimited when stored in its original packaging under ambient indoor storage conditions and protected from UV exposure.
Supply Format
Complete box of 15.49 m² with the following 35 mm sheets in variable dimensions: 450 x1200 mm, 330x1200 mm, 300x1200 mm, 390x1200 mm, 300x1200 mm, 190x1200 mm, 720x1200 mm, 480x1200 mm, 320x1200 mm, 750x1200 mm, 630x1200 mm, 270x1200 mm, 560x1200 mm, 130x1200 mm, 410x1200 mm, 490x1200 mm, 500x1200 mm, 240x1200 mm, 360x1200 mm, 860x1200 mm, 390x1200, 760x1200, 350x1200 mm, 210x1200, 550x1200 mm, 770x1200 mm y 1220x1200 mm.
