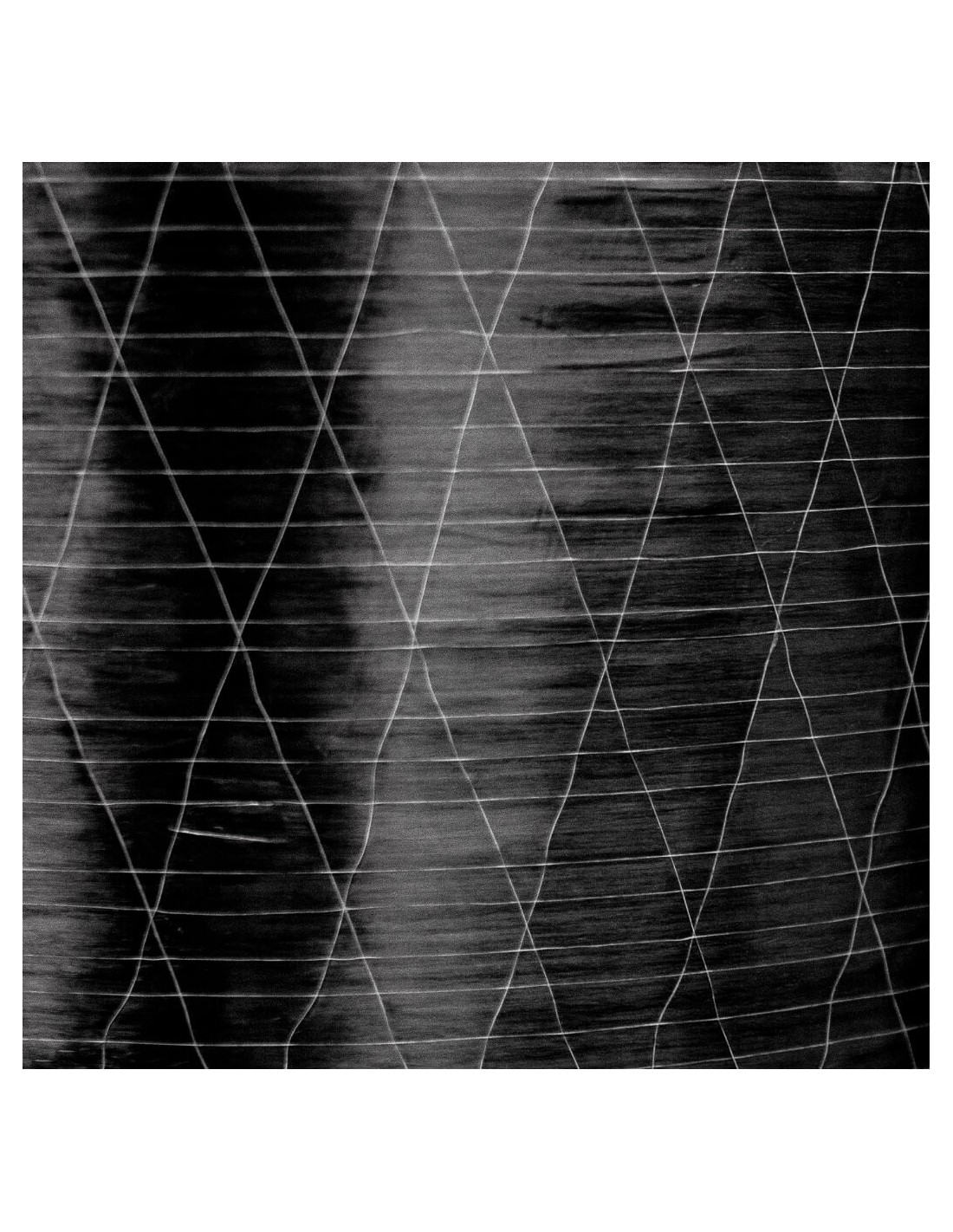

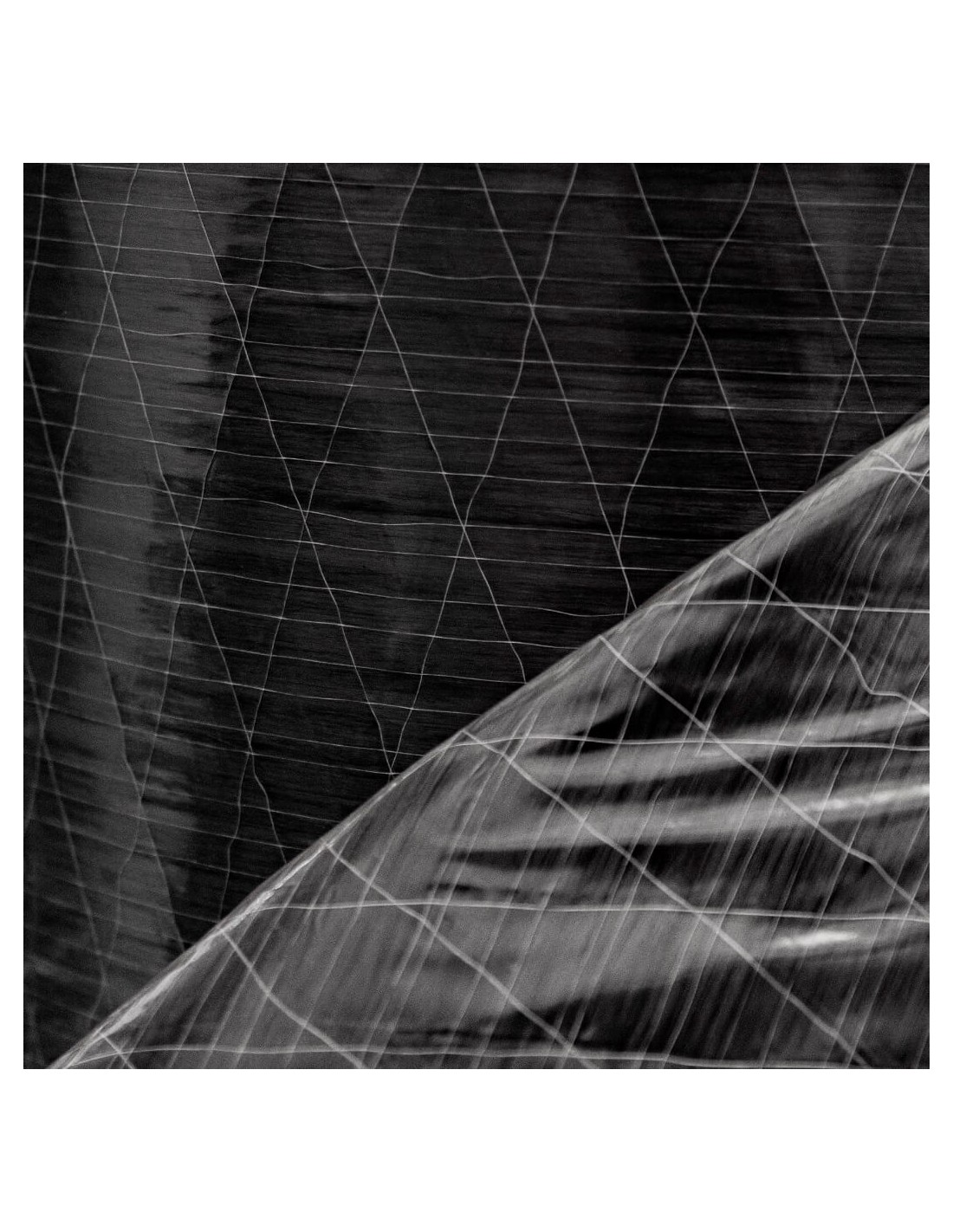

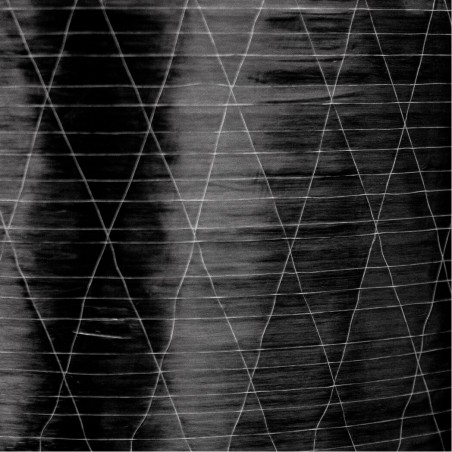

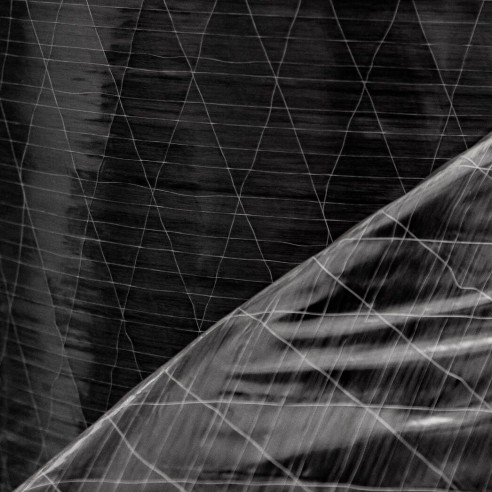

600 g/m2 Unidirectional Carbon Fabric 24K, 126 cm

SIGRATEX C U600 Unidirectional carbon fabric 24K of 600 g/m2 and 126 cm wide. Suitable for producing composite parts and tool with epoxy, urethane-acrylate or vinyl ester resins. Especially used for one direction structural reinforcements.

Thread type: 24 K (24,000 filaments per strand)

Manufactured with Sigrafil C50 T024 EPY high tenacity carbon fibre yarn.

• Tensile Strength: Min 4600 MPa and Max 5400 MPa
• Tensile Modulus: Min 255 GPa and Max 275 GPa
• Elongation: 1,9%

Roll Width: 126 cm

Type of supply

24K Unidirectional carbon fabric 600 g/m2 x 1 m2, supplied rolled in a tube and cardboard box

24K Unidirectional carbon fabric 600 g/m2 x 5 m2, supplied rolled in a tube and cardboard box

24K Unidirectional carbon fabric 600 g/m2 x 25 m2, supplied rolled in a tube and cardboard box

24K Unidirectional carbon fabric 600 g/m2 x 53.2 m2 roll, supplied in cardboard box
