300 gsm Forged Carbon Prepreg SM 520 12K ZH C12mm- X1 120BS 42%RW, 127 cm wide
300 gsm Forged Carbon Prepreg SM 520 12K ZH C12mm- X1 120BS 42%RW, 127 cm wide
300 gsm Forged Carbon Prepreg SM 520 12K ZH C12mm- X1 120BS 42%RW, 127 cm wide
300 gsm Forged Carbon Prepreg SM 520 12K ZH C12mm- X1 120BS 42%RW, 127 cm wide
300 gsm Forged Carbon Prepreg SM 520 12K ZH C12mm- X1 120BS 42%RW, 127 cm wide
300 gsm Forged Carbon Prepreg SM 520 12K ZH C12mm- X1 120BS 42%RW, 127 cm wide

300 gsm Forged Carbon Prepreg SM 520 12K ZH C12mm- X1 120BS 42%RW, 127 cm wide

Reference SM52012K/127-1
EAN 8431252550210
Stock Out of stock
Out-of-Stock
€53.95
€53.95 VAT excl. €65.28 VAT incl. · Spain
Tax excluded

By buying this product you can collect up to 6 point points. Your cart will total 6 points that can be converted into a voucher of €0.60.

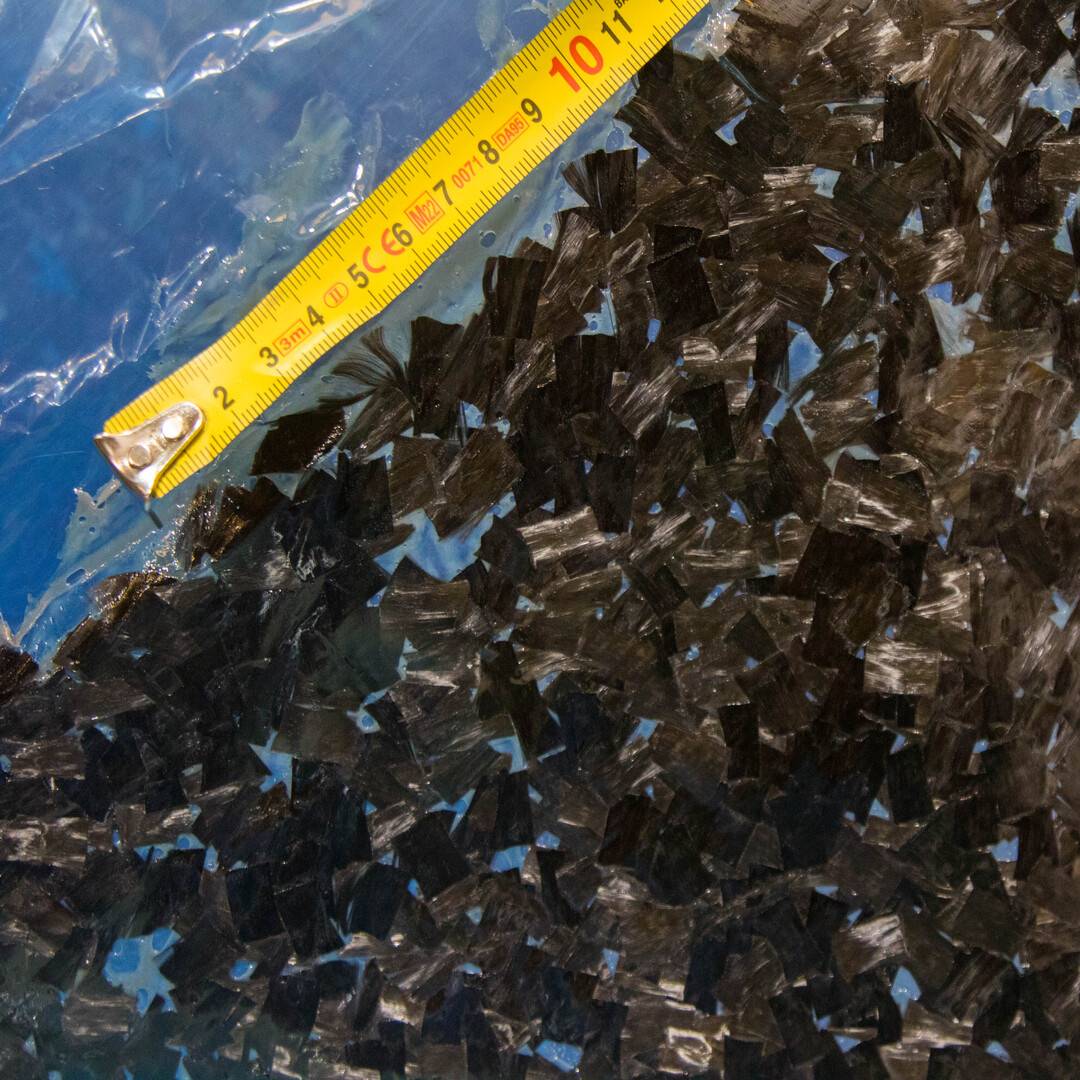

SM 520 12K ZH C12mm- X1 120BS 42%RW forged carbon prepreg is a recycled carbon fiber prepreg developed for aesthetic applications. It is made of chopped tow fibres impregnated with an epoxy resin system.

This product offers an out-of-the-ordinary surface appearance.

SM 520 12K ZH C12mm- X1 120BS is formulated for autoclave and can also be processed using compression molding process.

Quite acceptable results have been obtained by curing this prepreg simply under vacuum (-950 mbar) and in an oven, out of an autoclave (OoA). Parts made in this way will require a subsequent varnishing treatment to remove the small surface porosity.

Choose the type of supply


SM 520 12K ZH C12mm- X1 120BS 42%RW forged carbon prepreg is a recycled carbon fiber prepreg developed for aesthetic applications. It is made of chopped tow fibres impregnated with an epoxy resin system.

This product offers an out-of-the-ordinary surface appearance.

SM 520 12K ZH C12mm- X1 120BS is formulated for autoclave and can also be processed using compression molding process.

Quite acceptable results have been obtained by curing this prepreg simply under vacuum (-950 mbar) and in an oven, out of an autoclave (OoA). Parts made in this way will require a subsequent varnishing treatment to remove the small surface porosity.

Specifications

  • Suitable for a wide range of temperature applications: 80-130 °C.
  • Good self-adhesive properties.
  • Optimized for autoclave.
  • Very long lifespan at room temperature: 21 days at 21 °C.
  • Roll Width: 127 cm
  • Carbon Fiber Surface Weight (dry): 300 g/m² of chopped threads
  • Epoxy Resin Surface Weight: 220 g/m²
  • Total Prepreg Surface Weight: 520 g/m²
  • Chopped Thread Size (dry): 12 mm
  • Carbon Fiber Filament Type: 12K
  • Epoxy Resin Reference: X1-120 BS

X1-120 BS Epoxy Resin Specifications

  • Slightly pigmented epoxy resin
  • Resin shelf life at 21ºC: 21 days
  • Resin shelf life stored at -18ºC: 12 months
  • Gel time at 140 ºC: 135 s
  • Good mechanical and aesthetic/cosmetic properties
  • Tg (DMA) Onset [°C]: 136ºC*
  • Tg (DMA) Tanδ [°C]: 156ºC*

*conditions: cured 105 min @ 130°C"

Prepreg Curing Conditions

SM 520 12K ZH C12mm- X1 120BS 42%RW can be successfully polymerized by autoclave in a temperature range of 80oC y 130oC.

Recommended curing conditions: 90 min @ 130 ºC and 6 Bar pressure, (heat up 2-3 oC/min): please check the TDS available for alternative cure cycles.

Alternatively, it can be cured under vacuum out of the autoclave for 6 hours at 90 oC.

Type of Supply

300 gsm Forged Carbon Prepreg SM 520 12K ZH C12mm, 127 cm wide x 1 m lineal

300 gsm Forged Carbon Prepreg SM 520 12K ZH C12mm, 127 cm wide x 5 m lineal

300 gsm Forged Carbon Prepreg SM 520 12K ZH C12mm, 127 cm cm wide x Rollo de 22,7 m

8431252550210
