Filament 160 Heat-Shrink Film, 40 μ...

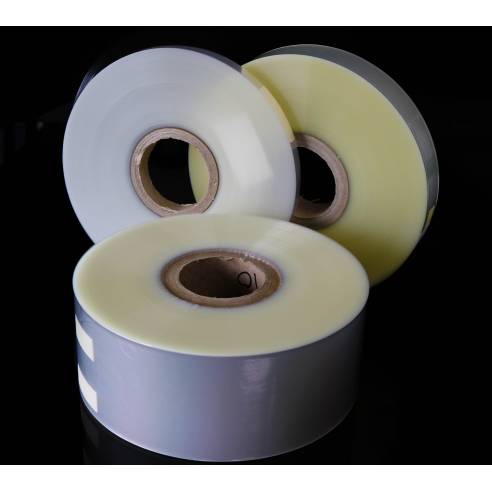

Filament 160 Heat-Shrink Film, 40 μ 160 º C x 1000 m

FIFILAMBA020
4 Items
€42.00

By buying this product you can collect up to 4 points. Your cart will total 4 points that can be converted into a voucher of €0.40.

€42.00 Tax incl. €42.00 Tax excl.

FILAMENT 160 is a technical heat-shrink film designed to be used on epoxy, polyester and phenolic resin systems. This standard heat-shrink film is used in direct contact with the laminate in order to compact it during a heating / curing process. Afterwards, FILAMENT 160 can easily be removed since it is also a release film which will leave a nice and shiny composite surface. FILAMENT 160 is not design to bleed out the resin from the laminate; to achieve this purpose, the DIATEX1500 & DIATEX2000 heat-shrink fabrics should be used.

This film is a bi-orientated polypropylene film. This heat-shrink film is a non-contaminant auto-release product, there is no release agent or silicone on the film.

Supply

 Calculate Shipping Cost
Shipping:
0
to Spain via
Estimated delivery: No estimated delivery specified day(s)
Ratings and comments from our customers
( 0.0 / 5) - 0 feedback(s)

FILAMENT 160 is a technical heat-shrink film designed to be used on epoxy, polyester and phenolic resin systems. This standard heat-shrink film is used in direct contact with the laminate in order to compact it during a heating / curing process. Afterwards, FILAMENT 160 can easily be removed since it is also a release film which will leave a nice and shiny composite surface. FILAMENT 160 is not design to bleed out the resin from the laminate; to achieve this purpose, the DIATEX1500 & DIATEX2000 heat-shrink fabrics should be used.

This film is a bi-orientated polypropylene film. This heat-shrink film is a non-contaminant auto-release product, there is no release agent or silicone on the film.



This film should be stored at room temperature and normal hygrometry.

Main features:

  • Raw fabric: Base PP
  • Colour: transparent
  • Thickness: 40 microns
  • Weight: 36 g/m2
    Styren resistant: yes
  • Max. Service temperature: 160 ºC
  • Shrinkage at 130 ºC: 5%
  • Shrinkage at 160 ºC: 15%
  • Beginning of shrinkage: 100 ºC

Type of Supply

FILAMENT 160 THERMO. Film 40μ 160°C Band 20 mm x 1000 linear metres

FILAMENT 160 THERMO. Film 40μ 160°C Band 40 mm x 1000 linear metres

FILAMENT 160 THERMO. Film 40μ 160°C Band 100 mm x 1000 linear metres
