Reference H080.03SGP-1
EAN 8431252533374
Stock 60 units
€30.85
€30.85 VAT excl. €37.33 VAT incl. · Spain
Tax excluded

By buying this product you can collect up to 3 point points. Your cart will total 3 points that can be converted into a voucher of €0.30.

H080.03SGP is a 80 kg/m3 density infusion PVC foam ideal for the manufacturing of sandwich laminates made by vacuum infusion process. It is compatible with all kind of thermosetting resins.

Choose the type of supply


‎

 Calculate Shipping Cost

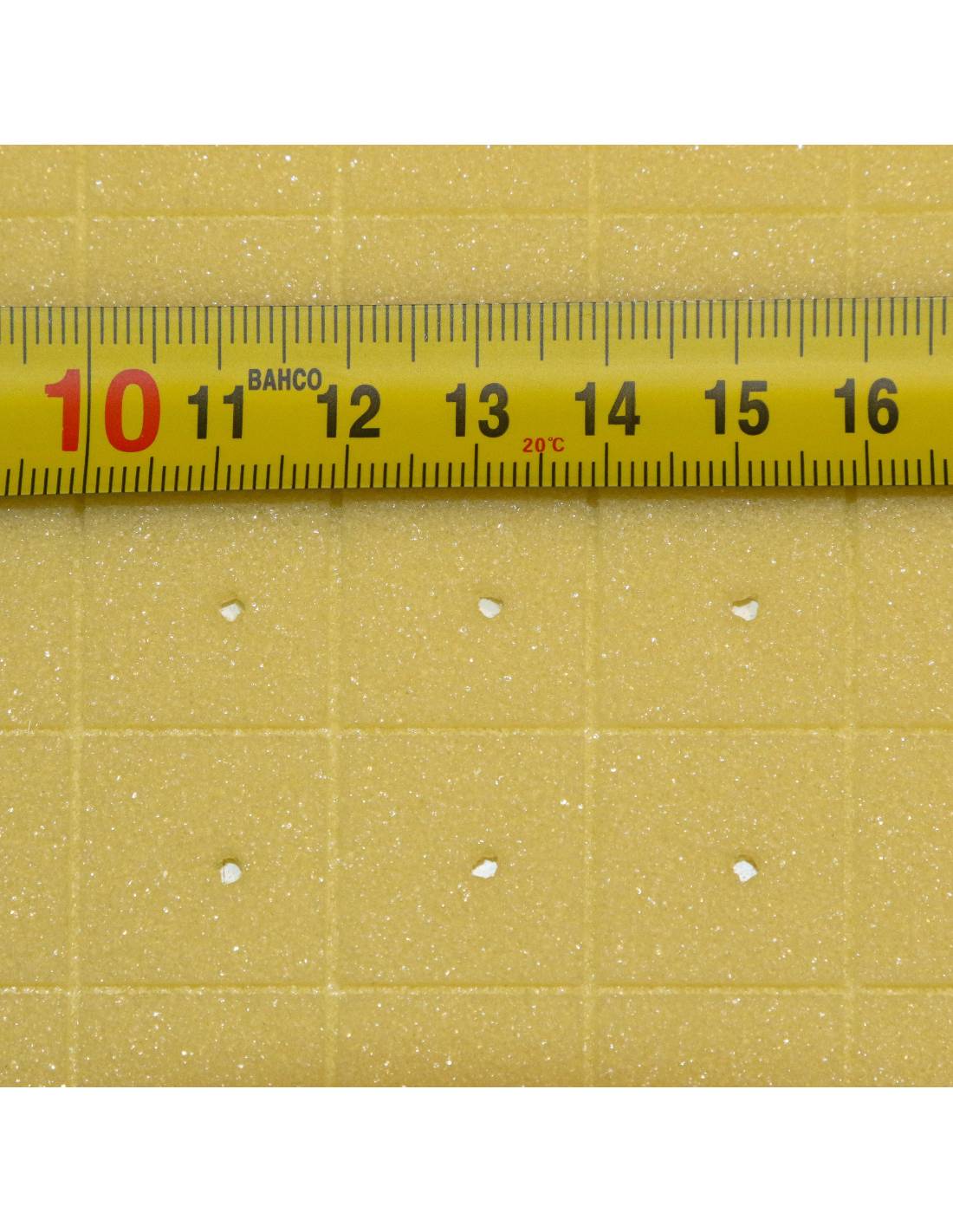

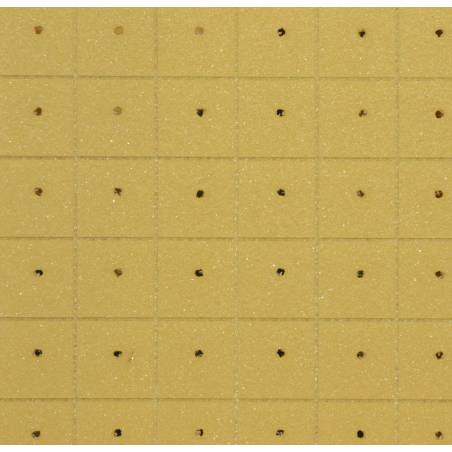

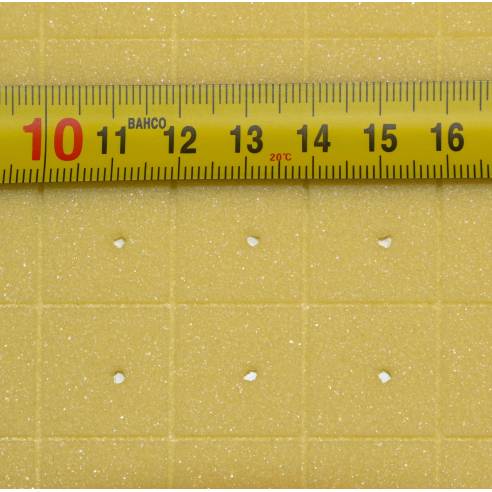

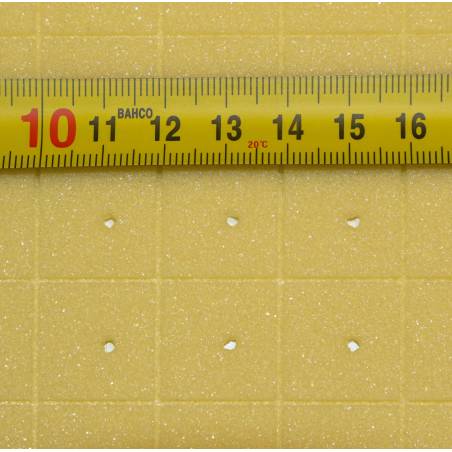

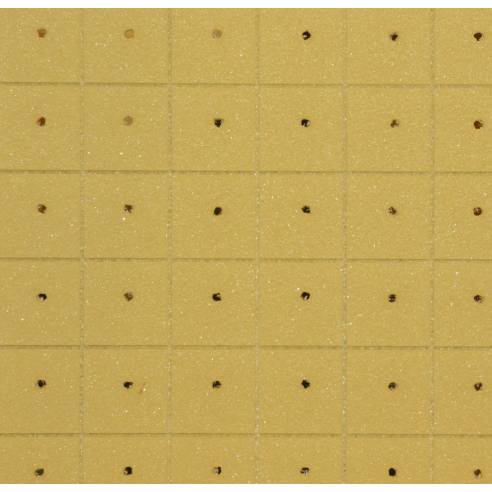

H080.03SGP 3 mm is a 80 kg/m3 density infusion PVC foam ideal for the manufacturing of sandwich laminates made by vacuum infusion process. It is compatible with all kind of thermosetting resins: polyester, vinyl ester, urethane-acrylate, epoxy, etc.

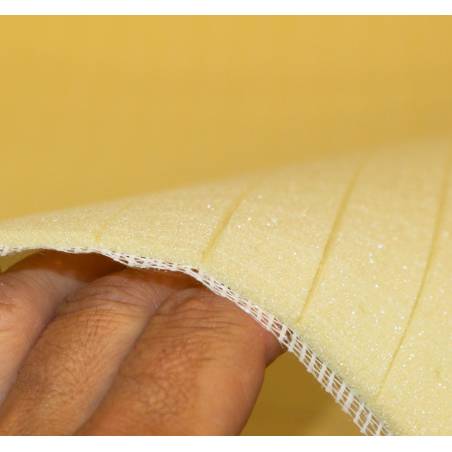

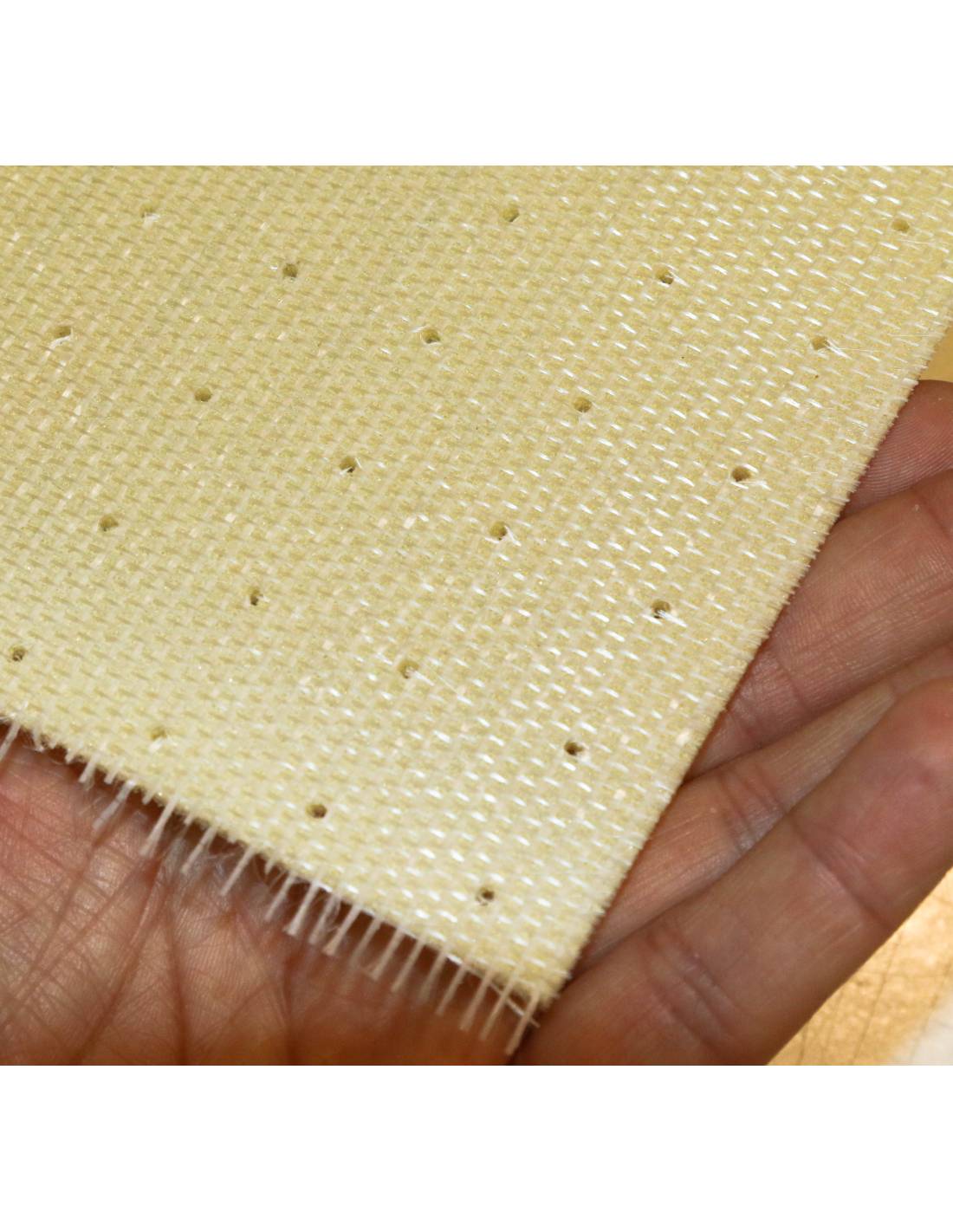

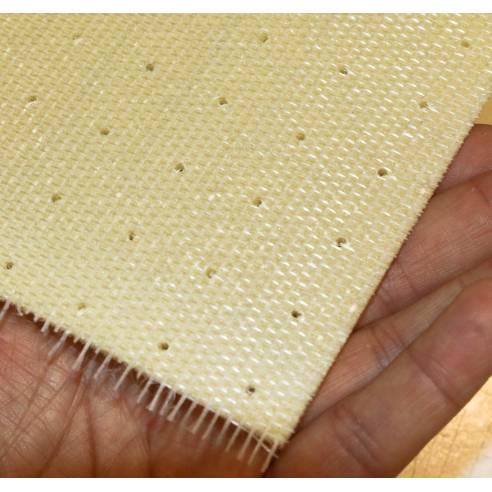

Sheets are supplied with a scrim at the back in order to hold all the foam squares together. By combining two existing finishes a third finishing is created with new features.

Measures of sheets: 1005 x 1075 x 3 mm (1,08 m2)
Boxes of 60 sheets

Type of supply

PVC H080.03SGP x 1 sheet of 1005 x 1075 x 3 mm (1.08 m2), supplied rolled in a cardboard box

PVC H080.03SGP x 60 sheets of 1005 x 1075 x 3 mm (64,8 m2) box, supplied in a cardboard box

60 Items
8431252533374
