Vacuum Pump 10 m3/h
Vacuum Pump 10 m3/h
Vacuum Pump 10 m3/h
Vacuum Pump 10 m3/h
Vacuum Pump 10 m3/h
Vacuum Pump 10 m3/h
Vacuum Pump 10 m3/h
Vacuum Pump 10 m3/h

10 m3/h Vacuum Pump

Reference 4030101010
EAN
Stock 1 units
Last items in stock
€2,265.00
€2,265.00 VAT excl. €2,740.65 VAT incl. · Spain
Tax excluded

By buying this product you can collect up to 274 point points. Your cart will total 274 points that can be converted into a voucher of €27.40.

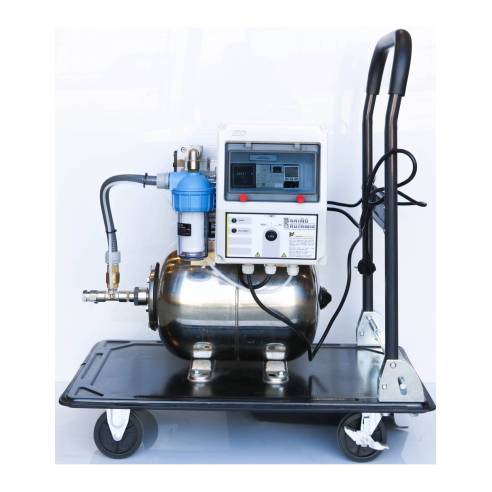

Vacuum pump with a 10m3/hour flow rate that stands out for having a 20-liter tank for vacuum accumulation. It is a pump with a 230V motor.


‎

 Calculate Shipping Cost

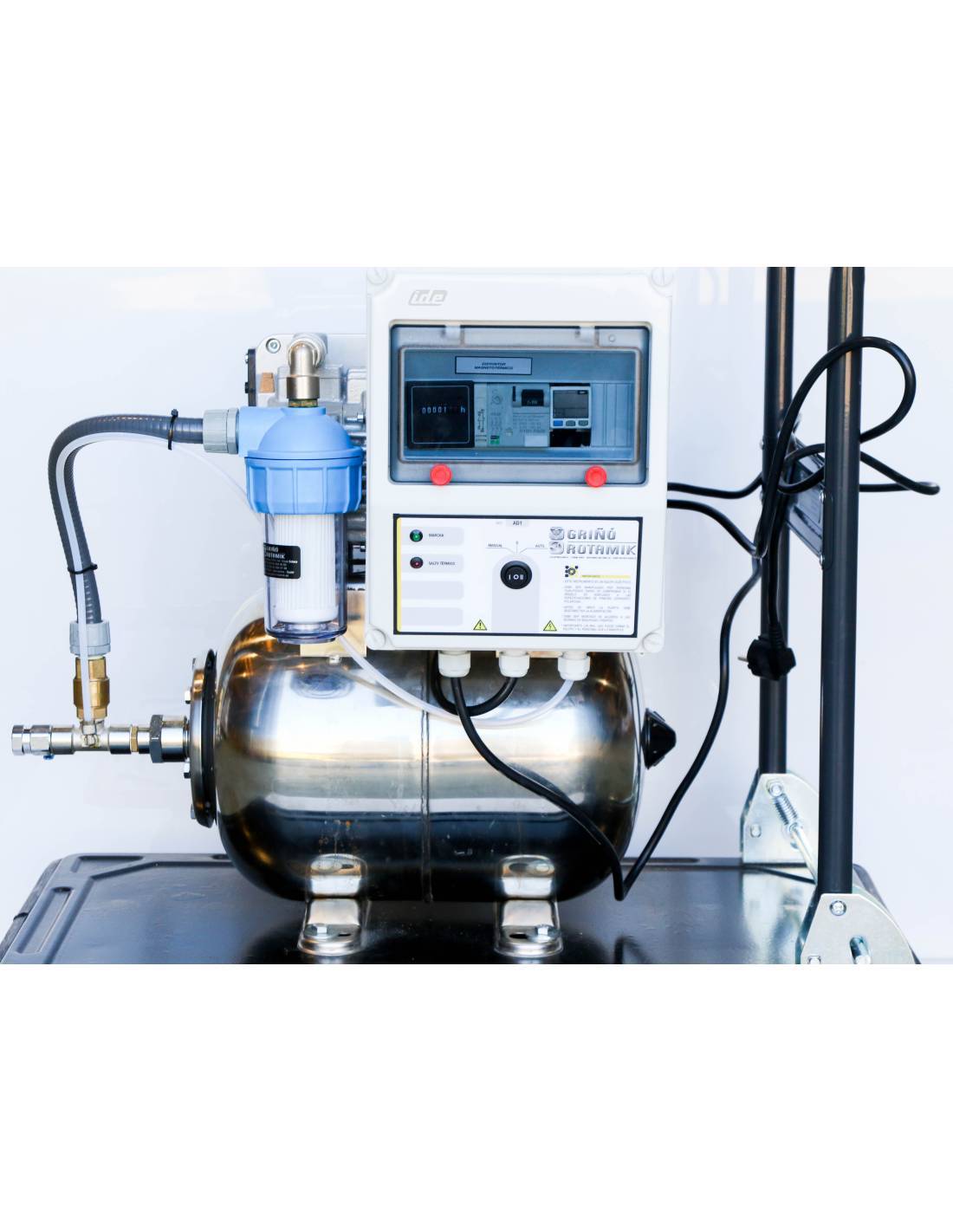

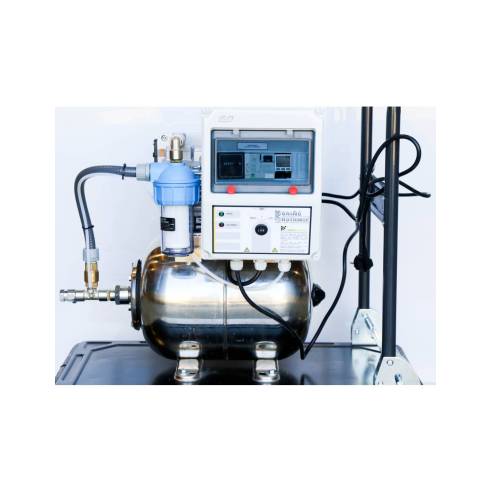

Vacuum Equipment S 10 VS 230. Tank of 20 L. MOTOR 1x0,37kw EW. With filter, cabinet, digital vacuum switch, wheels, and hour meter.

Items included:

  • 1 Vacuum pump 10 m3/h, 0.37Kw 230v single phase
  • 20L accumulator tank. stainless

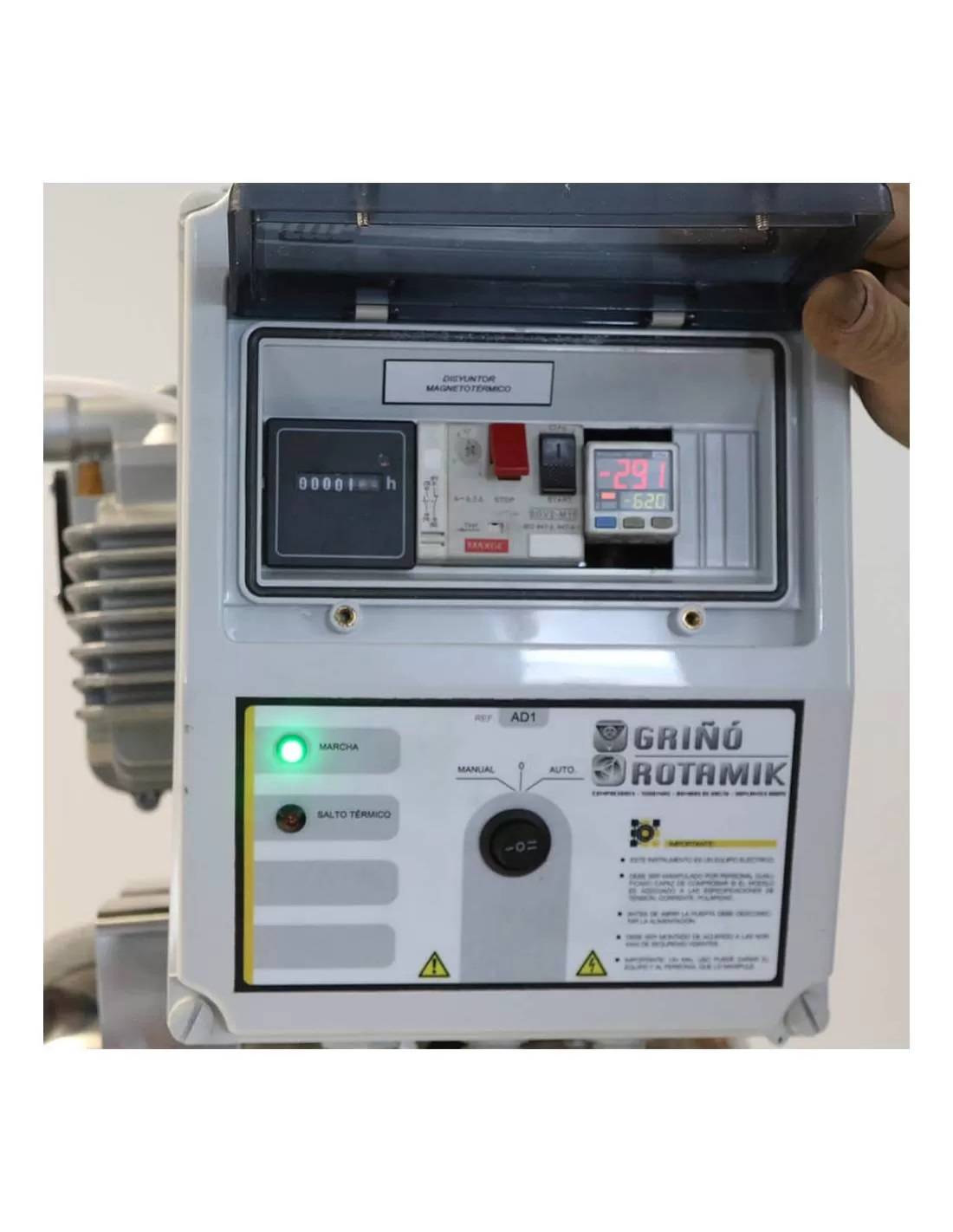

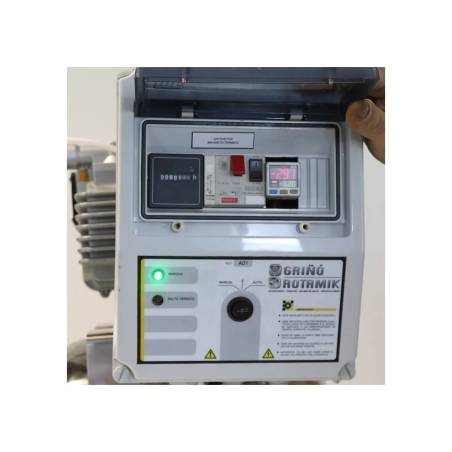

  • 1 Electrical cabinet with ABS casing and transparent window (230V single-phase power supply) With start / stop elements and protection for the motor
  • 1 Vacuum switch / vacuum gauge with digital display (integrated in the cabinet for on / off automation)
  • 1 Hour meter for the vacuum pump
  • 1 Suction prefilter
  • 1 integrated check valve
  • 1 manual isolation valve

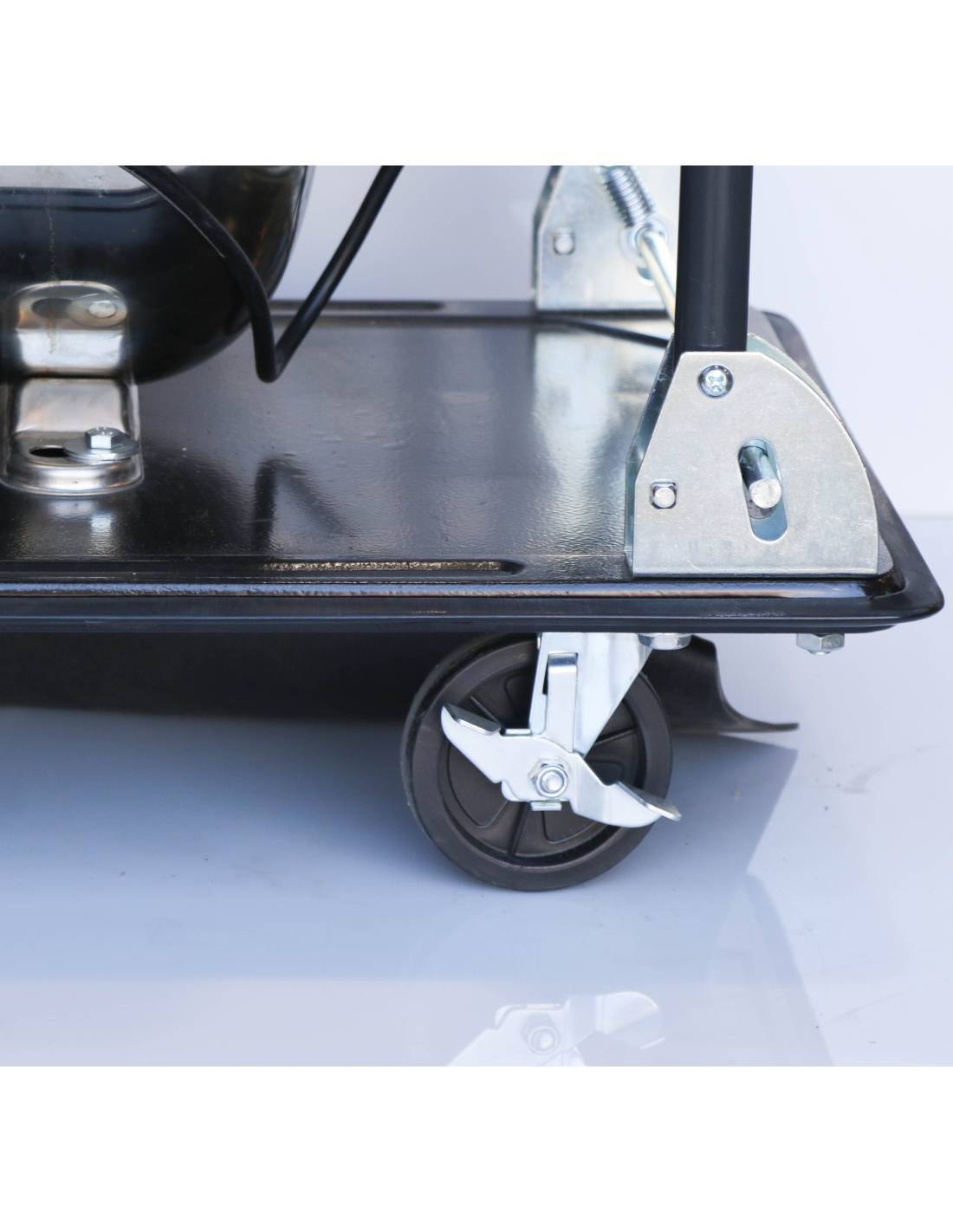

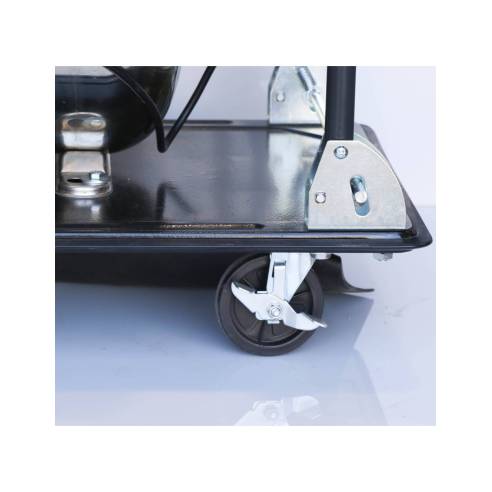

  • 4 wheels
  • Connection and union elements between the different components (tubes, fittings, etc.)

Overall dimensions: 500 x 400 x 600 mm (L x W x H)

Type of supply

Vacuum 10 m3/h pump x unit

1 Item
