Castropox E7UV Prussian Blue Epoxy Gelcoat, UV resistant
Castropox E7UV Prussian Blue Epoxy Gelcoat, UV resistant
Castropox E7UV Prussian Blue Epoxy Gelcoat, UV resistant
Castropox E7UV Prussian Blue Epoxy Gelcoat, UV resistant

Castropox E7UV Prussian Blue Epoxy Gelcoat, UV resistant

5 Items
€59.29

By buying this product you can collect up to 5 points. Your cart will total 5 points that can be converted into a voucher of €0.50.

€59.29 Tax incl. €49.00 Tax excl.
Tax included

The Gelcoat Castropox E7UV is formulated with an epoxy resin thixotropic laminate based on an aliphatic epoxy with a high degree of UV resistance. High dimensional stability at elevated temperatures, good mechanical properties and non-harmful in contact with skin.

Supply

 Calculate Shipping Cost
Shipping:
0
to Spain via
Estimated delivery: No estimated delivery specified day(s)
Ratings and comments from our customers
( 0.0 / 5) - 0 feedback(s)

The Gelcoat Castropox E7UV is formulated with an epoxy resin thixotropic laminate based on an aliphatic epoxy with a high degree of resistance to ultraviolet radiation (UV).

The Gelcoat Castropox E7UV has a lower tendency to crystallize at low temperatures. Its viscosity enables good handling during its application.

The curing system presents a great hardness, dimensional stability over various temperature ranges and also excellent chemical resistance.

Gelcoat Castropox E7UV must be applied on surfaces that have been previously treated with a mold release agent. To achieve a good adhesion of the epoxy resin lamination on this gelcoat must be laminar over just before the gelcoat is cured completely. That is to say, when we can leave it selected on our own fingerprint, but without us sticking the finger or get wet.

In order to increase the thermal resistance of the parts composite above the age of 65,orC it is recommended that a postcurado in the oven.

The product shall be subjected to a curing process during approximately 6 hours at 60 oC, or, in the case that there is a maximum requirement of thermal resistance, for a further 3 hours at 90 oC and, subsequently, a further 6 hours at 110 oC ~120 oC. During this process the temperature will increase GRADUALLY (to a maximum of 10oC per hour) until you reach the recommended maximum. The cooling process will follow these same steps (gradually as well). During the manufacture of pieces of composite made of carbon fiber, there is a tension to the contrary during the cooling process.

ATTENTION: A rise too fast the temperature may produce deformations in the part. On the other hand, if the cooling process is too fast can cause the appearance of cracks. This is a general rule for all composite products manufactured with epoxy resins.

Hardener Castrodur 331

Mixing ratio 113 : 30

Processability (gel time) of about 20-25 minutes.

With this hardener, the resin base of this gelcoat can be used, in some occasions, even as or topcoat in the product composite. The quality of the resulting surface will be good even without a potscurado heat (always and when using this hardener).

Main Characteristics

Gelcoat Castropox E7UV Component To



Density

1,14 – 1,18

g/cm3 at 25oC

Viscosity

 1200

mPas at 25 oC

Equivalent epoxy

170 – 180

g/kg

Value epoxy

0,46 – 0,47

-

Color

Prussian Blue

-



Thermal resistance

Component E7UV

Hardener Castrodur 331

To 25 oC (7 days)

60 oC

To 60 oC (12 hours)

70 oC

90 oC (10 hours)

90 oC

110~150 oC (>4 hours)

-



- High dimensional stability at elevated temperatures

- Good mechanical properties

- Non-harmful in contact with skin



Type of supply

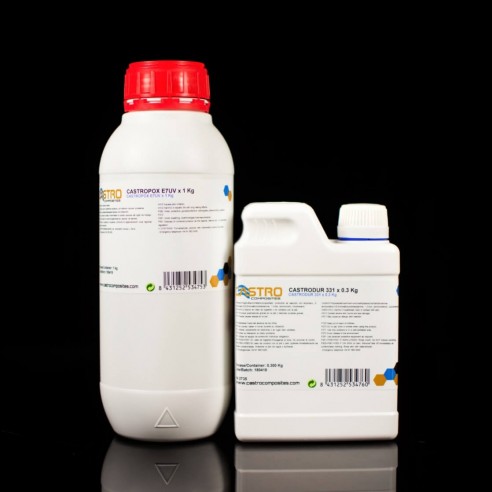

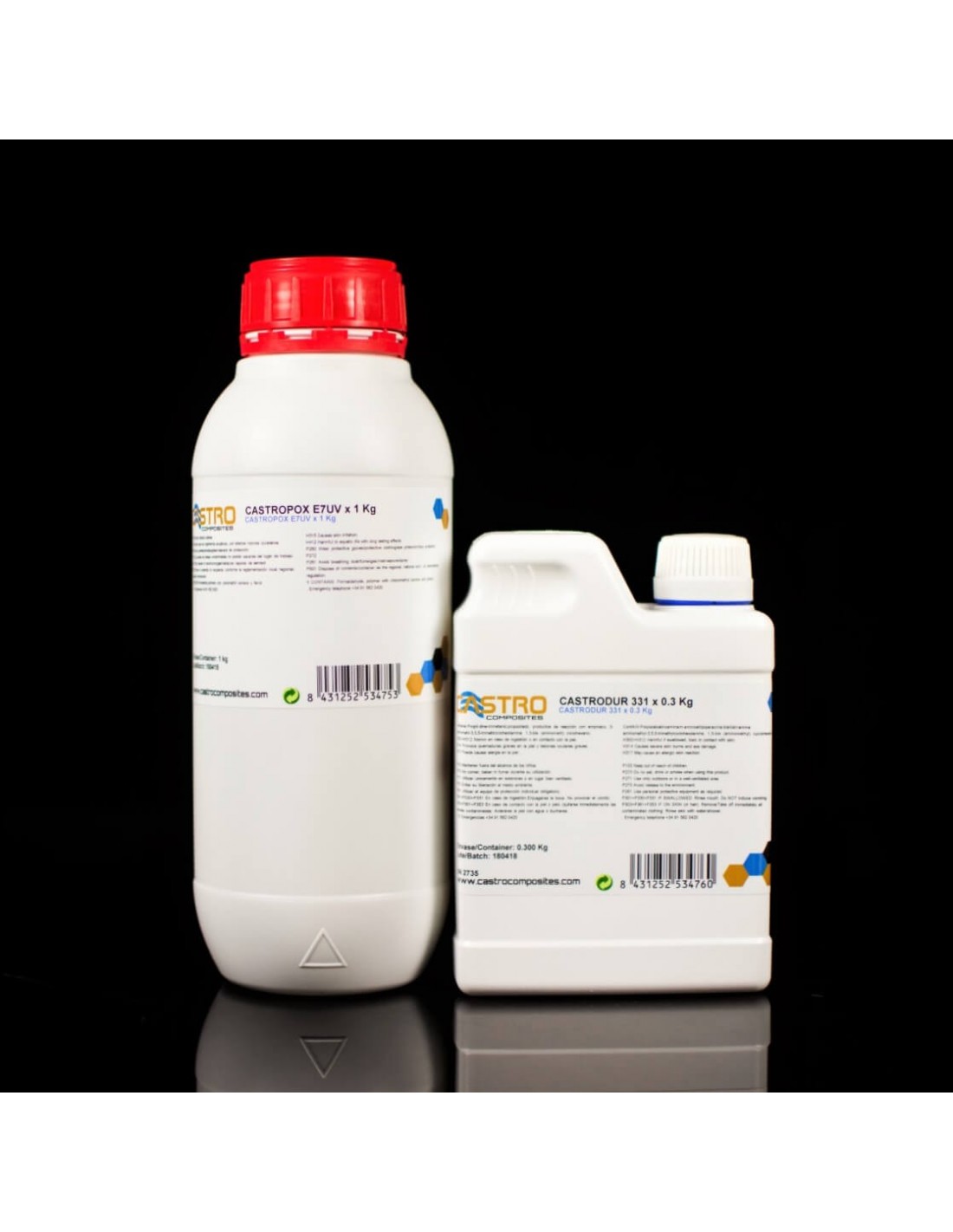

Castropox E7UV Prussian Blue Epoxy UV resistant Gelcoat  / Castrodur 331 Hardener x 1.43 kg (1.13 kg + 0.3 kg)

Castropox E7UV Prussian Blue Epoxy UV resistant Gelcoat  / Castrodur 331 Hardener x 6.44 kg (5.09 kg + 1.35 kg)

Castropox E7UV Prussian Blue Epoxy UV resistant Gelcoat  / Castrodur 331 Hardener x 31.46 kg (24.86 kg + 6.6 kg)

5 Items

ADR (DANGEROUS GOODS)

Some products will be considered dangerous goods (ADR) when their container exceed certain amounts. ADR products must be transported by special transport agencies, such as SCHENKER or TXT.

* The following products will be considered ADR (Dangerous Goods) when their container EXCEED the values shown in the table below. Products of equal or smaller size than those shown will not be considered ADR, so they may be transported also by SEUR and Envialia.

____________________________________________________

PRODUCT

Polyvinyl and Isopropyl alcohol ................................................  1 L

Ethylmethylketone / Methyl ethyl ketone ................................... 1 L

Acetone ....................................................................................   1 L

Methyl ethyl ketone Peroxide (X-8 MEKP Catalyst) ...................125 ml

Liquid Amine or Liquid Polyamide (Epoxy Resin Hardener) ....... 5 L

Resins, Top Coats and Gel Coats ................................................ 5 L

Paints ......................................................................................... 5 L

Styrene and MW Paraffin Solution .............................................. 5 L

_____________________________________________________________

If you have selected a product whose container size is considered ADR and you choose SEUR or Correos EXPRESS as carrier, those ADR products will be transferred into smaller containers to not breach the European Agreement concerning the International Carriage of Dangerous Goods by Road. That is, if you order a 25 kg resin drum and you select SEUR or Correos Express as carrier because you need the products sooner, the resin will be supplied in 5 containers of 5 kg each and its catalyst will be supplied in 5 containers of 100 g.

In any case, drums bigger than 25 kg must be shipped by TXT or Schenker.

* Shippings to Portugal will be always carried by Torrestir
