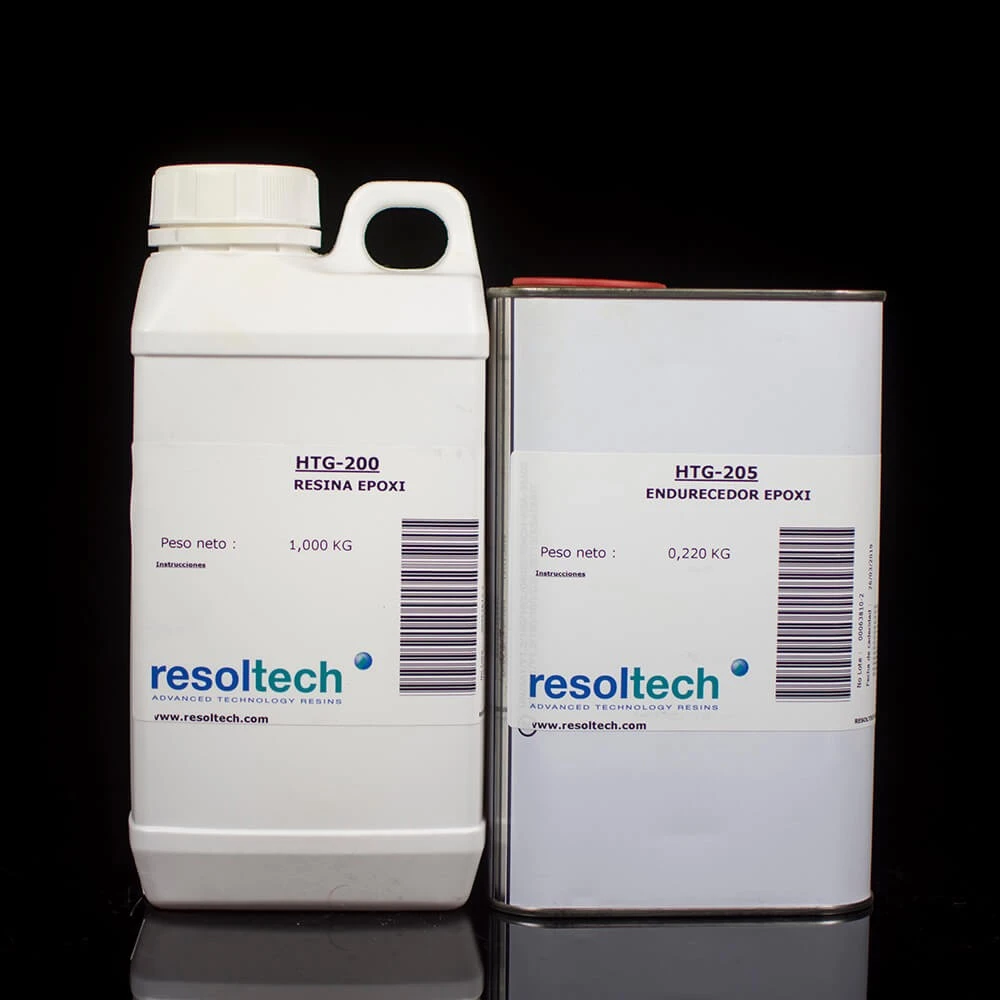

Epoxi Resin Resoltech HTG200/205 1kg

Resoltech HTG200/205 High Tg Infusion Epoxy Resin

WRE0205-1.22
5 Items
€150.00
€181.50 Tax incl. €150.00 Tax excl.
Tax excluded

By buying this product you can collect up to 18 point points. Your cart will total 18 points that can be converted into a voucher of €1.80.

High Tg Structural Infusion Epoxy system (200 °C).

RESOLTECH HTG 200 / HTG 205 epoxy system is very high Tg resin specially formulated for the production of tooling and large structural composite parts requiring Tg’s and service temperatures up to 200°C.

Choose the type of supply



 Calculate Shipping Cost
Ratings and comments from our customers
( 0.0 / 5) - 0 feedback(s)

High Tg Structural Infusion Epoxy system (200 °C).

RESOLTECH HTG 200 / HTG 205 epoxy system is very high Tg resin specially formulated for the production of tooling and large structural composite parts requiring Tg’s and service temperatures up to 200°C.

Due to its low viscosity, high wetting properties and excellent air release, is suitable for the manufacture of structures and composite parts by wet lay-up, infusion, injection moulding or filamentwinding while guaranteeing low toxicity working conditions to the users. The stable low viscosity vs temperature makes of the HTG 200 system a prime choice for infusion process.

This system guarantees high inter-laminar properties and impact resistance thanks to its exceptional wetting properties even on aramid reinforcements.

Laminates can be released from the moulds after a low temperature cure cycle (8h @ 50°C).

Mixing ratio = 100: 22 by weight (resin : hardener)

Gel time: 4 hours and 40 minutes for a mixture of 70 g at 23 °C .

Color: Colorless with a slightly yellowish hue

Type of supply

Resoltech HTG200/205 High Tg Infusion Epoxy Resin x 1.22 kg

Resoltech HTG200/205 High Tg Infusion Epoxy Resin  x 5.5 kg

Heat resistance
Above 150 ºC
Processing time
Above 2 hours
UV resistance
No
Colour
Slightly yellowish
Flexible
No
5 Items
8431252109616

Download Technical Data Sheet



Resoltech HTG200/205



Download Safety Data Sheet



Resoltech HTG200

Resoltech HTG205
